Serpentine Belt for 2008-2011 Freightliner Cascadia & More - Dayco 5100503

$52.99

Vehicles this part fits

    Part number: 5100503
    UPC: 036687417015
    Condition: New
    Weight: 0.87 LBS
    Item Package Quantity: 1
    $52.99
    Adding to cart… The item has been added

    Have questions?

    Dayco Serpentine Belt P/N:5100503
    Dayco Serpentine Belt P/N:5100503
    $52.99
    $52.99

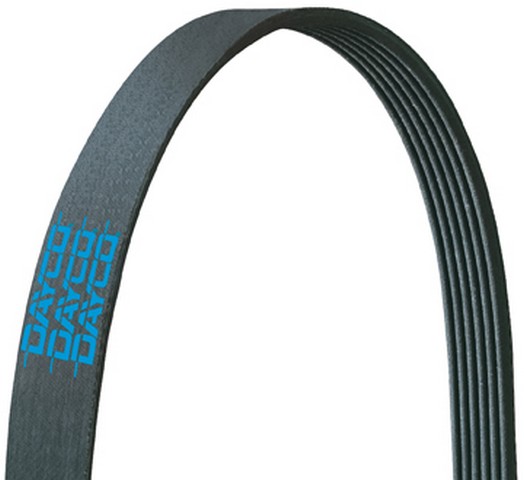

    Dayco 5100503 serpentine belt for the 2008-2011 Freightliner Cascadia 6-cylinder 14.0L and other vehicles drives the engine's accessories. Its catalog position is fan, so it is also a Dayco fan belt.

    • EPDM construction with aramid reinforcement
    • K-section belt with a straight-rib profile and standard rib depth
    • Operating temperature range of -42.7°C to 100°C (-45°F to 212°F)
    • Standards: SAE J1459 and SAE J2432

    Quick facts

    • Part: Dayco 5100503 serpentine belt
    • Fits: 2008-2011 Freightliner Cascadia 6-cylinder 14.0L and other vehicles
    • Position: Fan
    • Material: EPDM, aramid reinforced

    Cracks, fraying or glazed ribs can mean the belt is worn. A squeal or slipping can also come from a weak tensioner or a seized accessory pulley, so find the cause before you swap the belt.

    Fits

    The 2008-2011 Freightliner Cascadia 6-cylinder 14.0L and the 2007-2011 Freightliner Columbia 6-cylinder 12.7L or 14.0L take this belt, along with other Freightliner and Western Star vehicles. If your truck is not named here, search its year and engine under the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: fan
    • Quantity per vehicle: 1
    • Cross section: K-section
    • Rib profile: straight rib
    • Rib depth: standard

    Build and materials

    • Material: EPDM, aramid reinforced
    • Standards: SAE J1459, SAE J2432
    • Operating temperature: -42.7°C to 100°C (-45°F to 212°F)

    In the box

    This listing holds one serpentine belt, and a truck takes one.

    Interchange: 25-100502 · 25-100502HD
    10K502 · K100502HD · 10PK1275 · 10PK1280 · K100502 · 4100503 · 4100503X

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    10K502, K100502HD, 10PK1275, 10PK1280, K100502, 4100503, 4100503X, 25-100502, 25-100502HD, 01-24894-004, 3520501-C1

    Frequently Asked Questions

    Does this Freightliner Cascadia belt fit the 2013-2014 Freightliner Cascadia 6-cylinder 14.0L?

    Yes. Dayco 5100503 is listed for the 2013-2014 Freightliner Cascadia 6-cylinder 14.0L, and each truck takes one belt.

    What is this Dayco drive belt made of?

    Dayco 5100503 is EPDM with aramid reinforcement. It is a K-section belt with a straight-rib profile and standard rib depth.

    What temperature range and standards does this serpentine belt list?

    Its operating range is -42.7°C to 100°C (-45°F to 212°F). The standards listed are SAE J1459 and SAE J2432.

    What belt wear can I look for with the engine off?

    With the engine off and cool, look for cracks, fraying or glazed ribs along the belt. A squeal at start-up can also be a sign of wear.

    Is K100502 a cross-reference for the Dayco 5100503?

    Yes. K100502 is one of the numbers Dayco 5100503 replaces, along with 25-100502 and 10K502.
