Serpentine Belt for 2015-2023 Peterbilt 567 & More - Dayco 5120477

$62.99

Vehicles this part fits

    Part number: 5120477
    UPC: 036687910424
    Condition: New
    Weight: 0.70 LBS
    Item Package Quantity: 1
    $62.99
    Adding to cart… The item has been added

    Have questions?

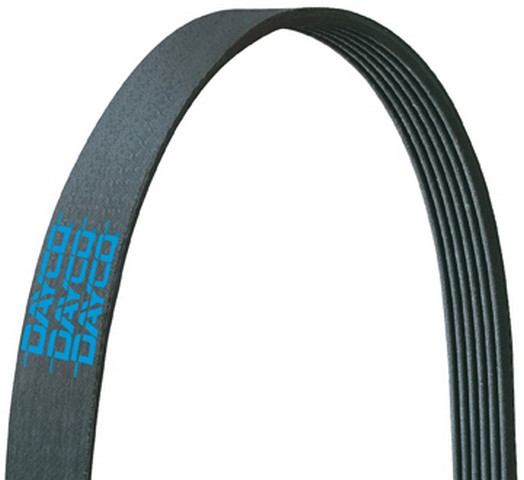

    Dayco Serpentine Belt P/N:5120477
    Dayco Serpentine Belt P/N:5120477
    $62.99
    $62.99

    Dayco 5120477 serpentine belt for the 2015-2023 Peterbilt 567 12.9L, the 2016-2017 567 6-cylinder 10.8L and other vehicles carries engine power to the fan and water pump. This listing is one belt.

    • EPDM construction with aramid reinforcement
    • K-section cross section with a straight rib profile and standard rib depth
    • Meets SAE J1459 and SAE J2432
    • Operating temperature from -45 F to 212 F (-42.7 C to 100 C)

    Quick facts

    • Part: Dayco 5120477 serpentine belt
    • Fits: the 2015-2023 Peterbilt 567 12.9L, the 2016-2017 567 6-cylinder 10.8L and other vehicles
    • Position: Fan, fan and water pump
    • Material: EPDM, aramid reinforced
    • Condition: New

    Cracks across the ribs, fraying, a glazed surface or a squeal at startup can mean the belt is worn, though a weak tensioner or a pulley out of line can be behind them too, so find which before you buy. Each engine takes one belt.

    Fits

    The 2014-2023 Peterbilt 579 12.9L and the 2014-2023 Kenworth T880 12.9L are among the many vehicles this belt fits, along with the ones named above. If your truck is not named here, search for it in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Fan, fan and water pump
    • Quantity per vehicle: 1

    Build and materials

    • Material: EPDM, aramid reinforced
    • Cross section: K-section
    • Rib profile: Straight rib
    • Rib depth: Standard
    • Standards: SAE J1459, SAE J2432
    • Operating temperature: -45 F to 212 F (-42.7 C to 100 C)
    • Condition: New

    Interchange: 25-120477HD
    12PK1210 · 4120476F · 4120476X · K120476 · K120476HD · K120477 · K120477HD · 25120477

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    NA, 12PK1210, 4120476F, 4120476X, K120476, K120476HD, K120477, K120477HD, 25120477, 25-120477HD, 25120477HD, D84-1003-121212, D84-1002-121212

    Frequently Asked Questions

    Is the Dayco 5120477 serpentine belt right for the 2014-2023 Kenworth T880 12.9L?

    Yes. Dayco 5120477 fits the 2014-2023 Kenworth T880 12.9L, and each truck takes one belt.

    What is this Dayco drive belt made of?

    Dayco 5120477 is made of EPDM with aramid reinforcement. It has a K-section cross section, a straight rib profile and standard rib depth.

    What temperature range does this Dayco fan belt operate in?

    This belt operates from -45 F to 212 F (-42.7 C to 100 C). It meets SAE J1459 and SAE J2432.

    How can I tell if this serpentine belt is worn?

    With the engine off and cool, look for cracks across the ribs, fraying or a shiny glazed surface. A squeal at startup is another sign the belt may be worn.

    Does this belt replace part number K120477?

    Yes. K120477 is one of the interchange numbers listed for Dayco 5120477, along with 12PK1210 and 4120476F.
