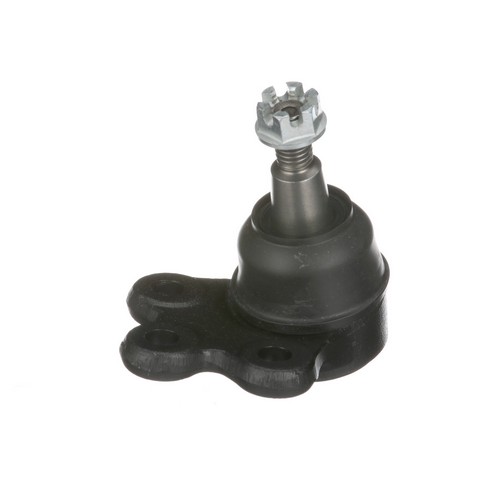

Delphi TC5717 front lower ball joint for the 2010-2017 Chevrolet Equinox and other vehicles joins the control arm to the steering knuckle. It lets the wheel pivot as the suspension moves.
- High-quality forgings for increased strength and smooth operation
- Chloroprene rubber boot that improves durability and helps prevent premature failure
- Machined to micron tolerances for durability and smooth joint operation
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC5717 ball joint
- Also called: suspension ball joint
- Fits: 2010-2017 Chevrolet Equinox and other vehicles
- Position: Front lower
- Condition: New
A worn suspension ball joint can cause a clunk over bumps, loose steering or uneven tire wear. These signs alone do not prove the joint is at fault, since a worn control arm bushing can cause them too. This listing is one joint; the vehicle takes two, one on each side of the axle, and both sides are normally replaced together.
Fits
It is a front lower ball joint for the 2010-2017 Chevy Equinox and the 2010-2017 GMC Terrain.
Specifications
Fit and size
- Position: Front lower
- Quantity per vehicle: 2
Build and materials
- Construction: forged
- Boot: chloroprene rubber
- Corrosion protection: anti-corrosion protection applied
- Condition: New
Interchange: 610.66026 · 523-655 · 524-158
19258791 · 20945779 · 20945780 · 25872808 · BJ91315 · CB90053 · CB90053PR · CB90054 · CB90054PR · K500227 · CMS501117 · CMS501118 · GS50519 · MS50519 · TXMS50519 · JBJ1125
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
610.66026, 523-655, 524-158, 19258791, 20945779, 20945780, 25872808, BJ91315, CB90053, CB90053PR, CB90054, CB90054PR, K500227, CMS501117, CMS501118, GS50519, MS50519, TXMS50519, JBJ1125
Frequently Asked Questions
Is this the right ball joint replacement for a 2015 Chevy Equinox?
Yes. Delphi TC5717 is a front lower ball joint that fits the 2010-2017 Chevrolet Equinox, which covers 2015, and the 2010-2017 GMC Terrain.
Do I need one or two for a 2012 Chevy Equinox ball joint replacement?
This listing is one front lower joint. The 2010-2017 Chevrolet Equinox takes two, one on each side of the axle, and both sides are normally replaced together.
Is this Delphi ball joint an upper or lower joint?
It is a lower joint. Delphi TC5717 is a front lower ball joint, sold one per listing.
How is this front lower ball joint tested?
Delphi parts are tested at temperatures below -40 degrees C and over 120 degrees C, and exposed to 720 hours of salt spray.
Is Delphi TC5717 a replacement for number K500227?
Yes. K500227 is on the interchange list for Delphi TC5717, along with numbers such as 523-655 and CB90053.
