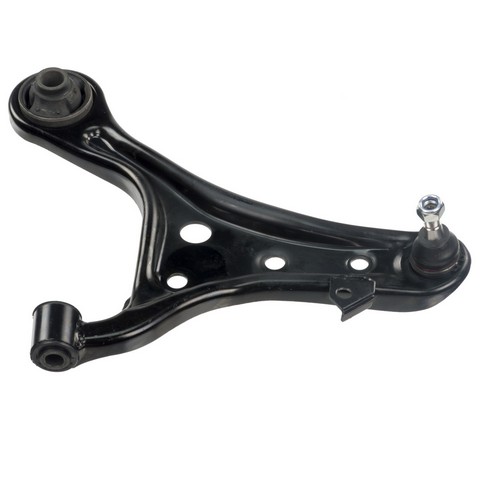

Delphi TC3262 front right lower control arm with ball joint for the 2012-2015 Scion iQ connects the wheel to the chassis and lets it pivot. This Delphi control arm, also called a control arm and ball joint assembly, comes with the ball joint already attached.
- Withstands temperatures below -40 degrees C and over 120 degrees C, plus 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on every control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot-welded control arm for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC3262 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2012-2015 Scion iQ
- Position: Front right lower
- Condition: New
A clunk over bumps, uneven front tire wear or loose steering can mean a worn lower arm or ball joint. Those signs alone do not prove this part is the problem, since a worn strut mount can cause similar ones.
Fits
This front right lower control arm fits the 2012-2015 Scion iQ.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle: 1
Build and materials
- Construction: control arm with ball joint assembly
- Condition: New
- Country of origin: Turkey
In the box
One front right lower control arm with ball joint. This side of the 2012-2015 Scion iQ takes one; the front left is a separate part, ordered on its own, and the two are normally replaced together.
Interchange: 48068-79015
KSC6048 · CMS861152
This part cross-references / interchanges with the following part numbers:
KSC6048, CMS861152, 48068-79015
Frequently Asked Questions
Does the Delphi TC3262 fit the 2012-2015 Scion iQ?
Yes. Delphi TC3262 is the front right lower control arm with ball joint for the 2012-2015 Scion iQ. The front left side is a separate part.
Does this front right lower arm come with the ball joint attached?
Yes. The ball joint is part of this assembly, so the listing is one front right lower piece with the joint already on it.
How closely are the ball studs machined on this control arm?
The ball studs are machined to micron tolerances, which is what gives the joint its durability and smooth operation.
What corrosion and temperature testing does this control arm go through?
It withstands temperatures below -40 degrees C and over 120 degrees C and is exposed to 720 hours of salt spray. Each part also gets anti-corrosion protection.
Is 48068-79015 the same part as Delphi TC3262?
Yes. 48068-79015 is a cross-reference number for Delphi TC3262, the front right lower control arm with ball joint. More cross-reference numbers are on the Interchange line.
