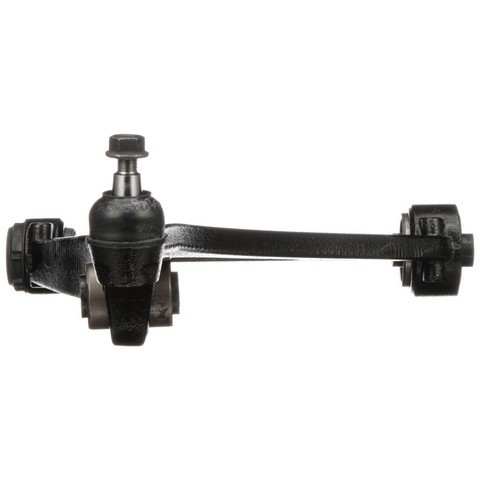

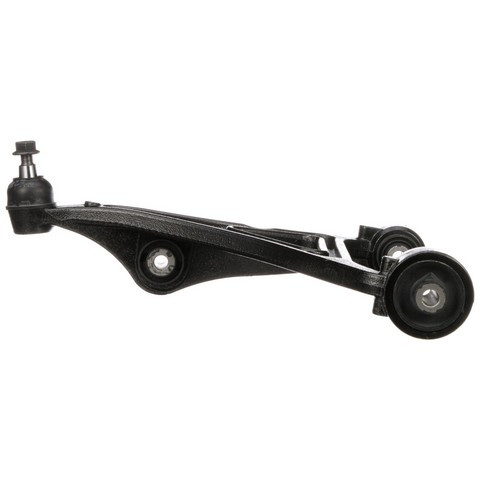

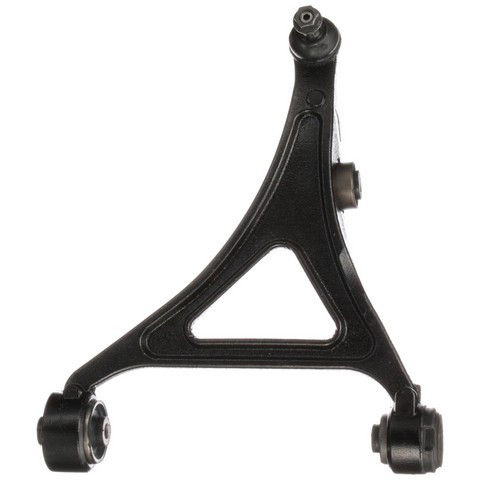

Delphi TC6011 front left lower control arm with ball joint for the 2011-2023 Dodge Charger and other vehicles connects the front left wheel to the chassis. As a control arm and ball joint assembly, it replaces the arm and its joint together.
- Tested for temperatures below -40 degrees C and over 120 degrees C, plus 720 hours of salt spray
- Every Delphi control arm gets 100% crack detection and ultrasonic flaw detection
- Ball studs machined to micron tolerances for durable, smooth joint operation
- Robot-welded arm for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC6011 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011-2023 Dodge Charger and other vehicles
- Position: Front left lower
- Condition: New
Worn sway bar links, tie rods, strut mounts or a wheel bearing can be behind a clunk over bumps, loose steering or uneven tire wear too, so find the cause before buying. If the arm or its ball joint is the cause, this assembly replaces both.
Fits
It is a lower control arm for the 2011-2023 Dodge Charger and also fits the 2018-2023 Chrysler 300 and the 2017-2023 Dodge Challenger. This listing is one arm for the front left, and a 2018-2023 Chrysler 300 takes one there; the front right is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1
Build and materials
- Type: Control arm with ball joint
- Welding: Robot-welded
- Ball studs: Machined to micron tolerances
- Finish: Anti-corrosion protection
- Condition: New
Interchange: 622.63048 · 5168 283AB · 68211 103AA · 68211 103AB · 524-053
CB81443 · CB81443PR · RK622525 · CMS251164
This part cross-references / interchanges with the following part numbers:
622.63048, 5168 283AB, 68211 103AA, 68211 103AB, 524-053, CB81443, CB81443PR, RK622525, CMS251164
Frequently Asked Questions
Is Delphi TC6011 a 2011-2023 Dodge Charger control arm?
Yes. Delphi TC6011 is a front left lower control arm with ball joint for the 2011-2023 Dodge Charger. It covers the front left position only.
Does Delphi TC6011 work as a 2018-2023 Chrysler 300 control arm?
Yes. Delphi TC6011 fits the front left lower position on the 2018-2023 Chrysler 300, and on the 2011-2016 model too.
Does Delphi TC6011 come with the ball joint attached?
Yes. Delphi TC6011 is a control arm with ball joint, so the joint is part of the assembly. Its ball stud is machined to micron tolerances.
What can a worn lower control arm ball joint feel like?
A clunk over bumps, loose or wandering steering and uneven tire wear can mean a worn arm or ball joint. A shop can inspect the joint for play.
Is 524-053 an interchange number for Delphi TC6011?
Yes. 524-053 is on the Interchange list for Delphi TC6011, along with 68211 103AA, 68211 103AB and 5168 283AB.
