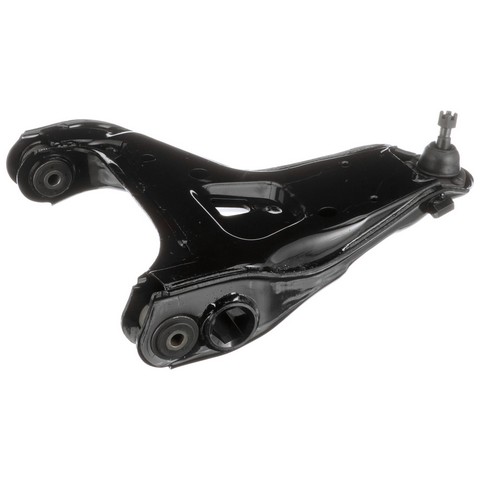

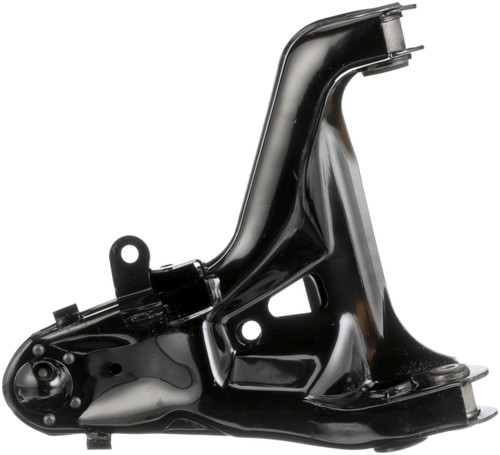

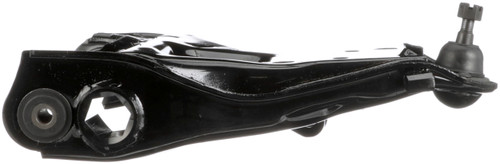

Delphi TC6303 front left lower control arm with ball joint for the 1995-2005 Chevrolet Blazer and other vehicles connects the left front wheel to the frame and lets the suspension move with the road. Also sold as a control arm and ball joint assembly, it carries the joint the wheel pivots on.
- Control arm withstands temperatures below -40 degrees C and over 120 degrees C, plus 720 hours of salt spray exposure
- Each Delphi control arm gets 100% crack detection and ultrasonic flaw detection
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC6303 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1995-2005 Chevrolet Blazer and other vehicles
- Position: Front left lower
- Condition: New
A clunk over bumps, uneven front tire wear or loose steering can come from a worn ball joint or control arm. Worn tie rod ends, a wheel bearing or a sway bar link can also be behind these signs, so find the cause before buying.
Fits
This is a 1995-2005 Chevrolet Blazer control arm that also fits the 1995-2004 Chevrolet S10 and the 1995-2004 GMC Sonoma. On the 1995-2005 Chevrolet Blazer the front left takes one arm; this listing is that single arm, the front right is a separate part, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: front left lower
- Quantity per application: 1
Build and materials
- Ball joint: part of the assembly
- Construction: robot-welded arm
- Ball studs: machined to micron tolerances
- Finish: anti-corrosion protection on each part
- Condition: new
Interchange: 52-1795
15293528 · CB90153 · CB90153PR · CK620300 · RK620300 · RK622213 · CMS501159
This part cross-references / interchanges with the following part numbers:
52-1795, 15293528, CB90153, CB90153PR, CK620300, RK620300, RK622213, CMS501159
Frequently Asked Questions
Is this the 1995-2004 Chevrolet S10 control arm for the front left?
Yes, Delphi TC6303 is a front left lower control arm with ball joint for the 1995-2004 Chevrolet S10. If your car is not named here, look up its year and model in the "Vehicles it fits" section.
Is this the 1995-2004 GMC Sonoma control arm for the front left?
Yes, the 1995-2004 GMC Sonoma takes this front left lower control arm, one per side. The front right is a separate part.
How are the ball studs on this control arm made?
Delphi machines the ball studs to micron tolerances for durability and smooth joint operation. The arm itself is robot-welded.
Does the number 52-1795 cross to Delphi TC6303?
Yes, 52-1795 is among the interchange numbers listed for Delphi TC6303. The full set of cross-reference numbers is on the Interchange line.
Does this front left lower control arm come with the ball joint?
Yes. The ball joint is part of this control arm assembly, so it is not a separate purchase.
