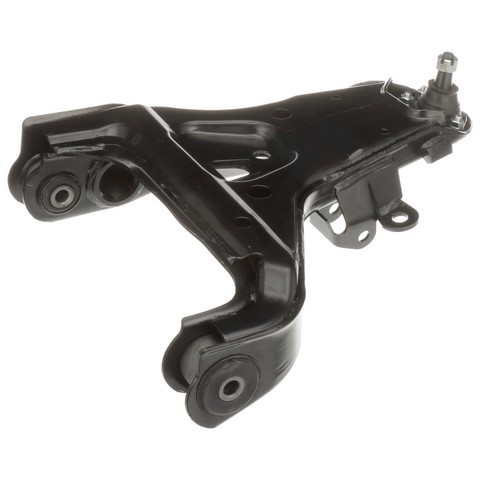

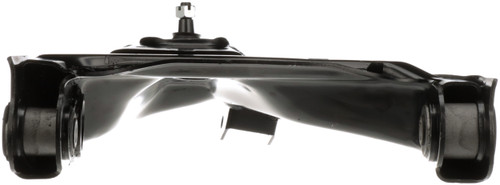

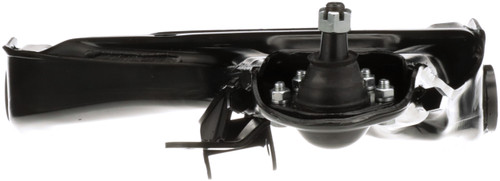

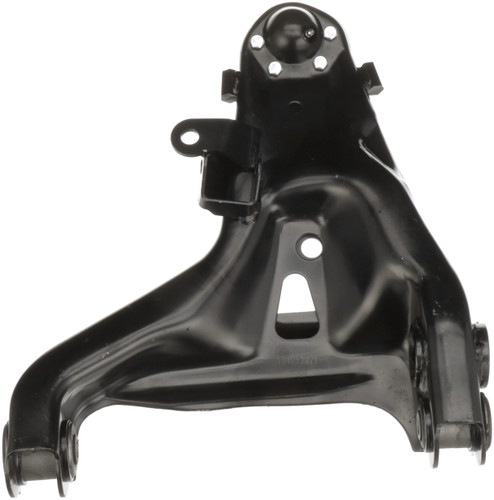

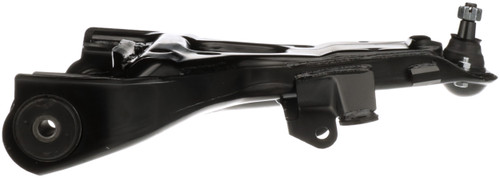

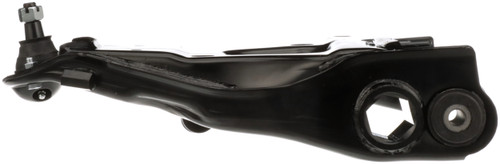

Delphi TC6304 front right lower control arm with ball joint for the 1992-2005 GMC Jimmy and other vehicles connects the wheel to the chassis. Sold as a control arm and ball joint assembly, it pivots at the ball joint as the suspension moves.
- Parts withstand temperatures below -40 °C and over 120 °C and are exposed to 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on each control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC6304 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1992-2005 GMC Jimmy and other vehicles
- Position: Front right lower
- Condition: New
A clunk over bumps, loose steering or uneven tire wear can mean this arm or its ball joint is worn, though worn tie rod ends or a tired shock can be behind the same signs, so find the cause before buying parts.
Fits
The 1992-2005 GMC Jimmy and the 1995-2004 Chevrolet S10 are covered, along with more vehicles, and it is also a 1995-2005 Chevrolet Blazer control arm. This listing is one arm for the front right side; the front left is a separate part ordered on its own, and the pair is normally replaced together. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle for this position: 1
Build and materials
- Type: Control arm with ball joint
- Construction: Robot welded
- Ball studs: Machined to micron tolerances
- Finish: Anti-corrosion protection
- Condition: New
In the box
One front right lower control arm with ball joint.
Interchange: 521-796
520142 · 15293527 · CB90154 · CB90154PR · CB90164 · CB90164PR · CK620300 · CK620464 · RK620464 · RK622212 · CMS501160
This part cross-references / interchanges with the following part numbers:
520142, 521-796, 15293527, CB90154, CB90154PR, CB90164, CB90164PR, CK620300, CK620464, RK620464, RK622212, CMS501160
Frequently Asked Questions
Does this S10 control arm fit the right front of a 1995-2004 Chevrolet S10?
Yes. Delphi TC6304 is the front right lower control arm with ball joint for the 1995-2004 Chevrolet S10. The front left side takes a separate part.
Is this GMC Jimmy control arm made for the 1992-2005 GMC Jimmy?
Yes. It is the front right lower arm for the 1992-2005 GMC Jimmy. If yours is a different model, open the "Vehicles it fits" section and look up your own car.
Does this Delphi control arm come with the ball joint?
Yes. The ball joint is part of the arm on Delphi TC6304, so you order one front right lower unit and no separate joint.
Is the Delphi TC6304 control arm protected against rust?
Yes. Anti-corrosion protection is applied to each part, and the parts are exposed to 720 hours of salt spray.
Does Delphi TC6304 replace CK620464?
Yes, CK620464 is one of the numbers this arm replaces. Delphi TC6304 is the front right lower control arm with ball joint.
