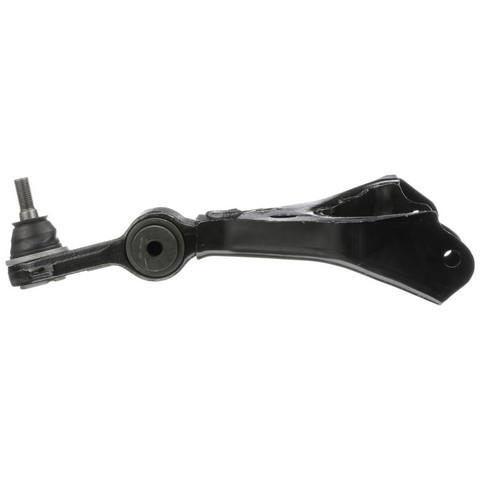

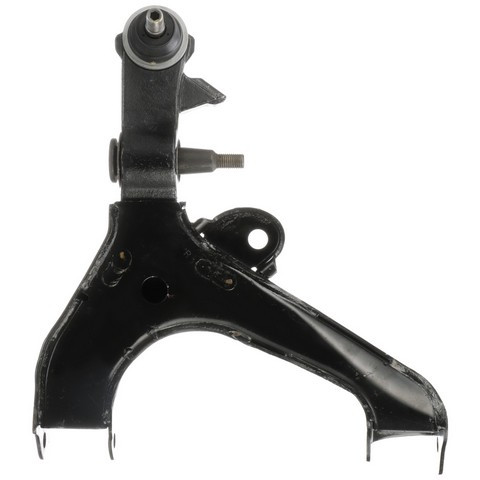

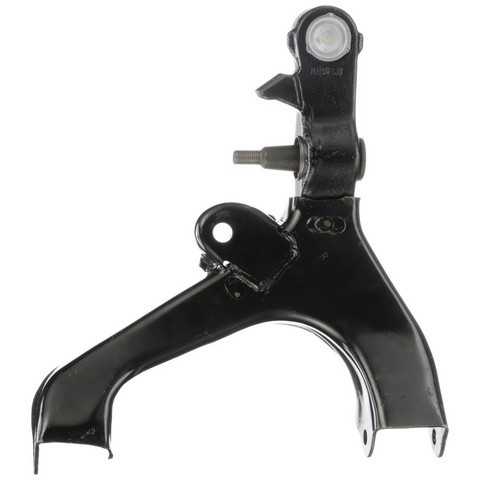

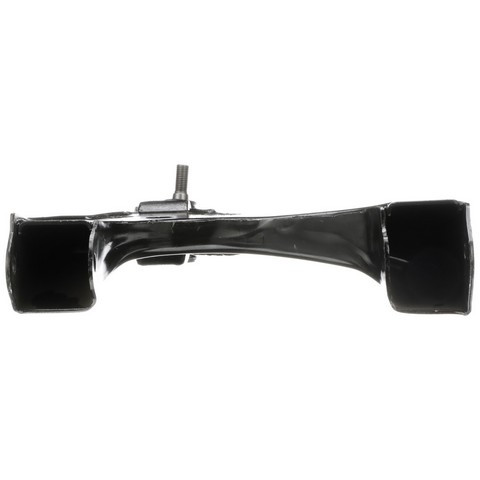

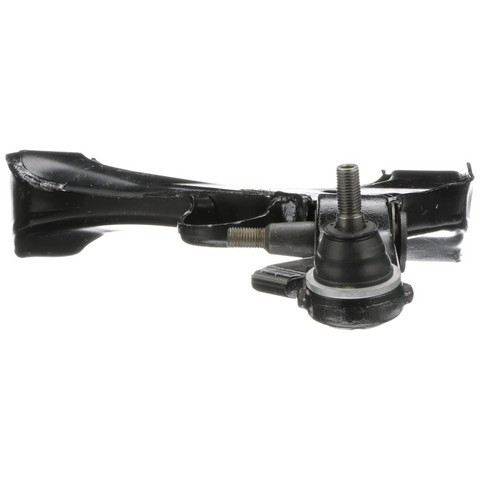

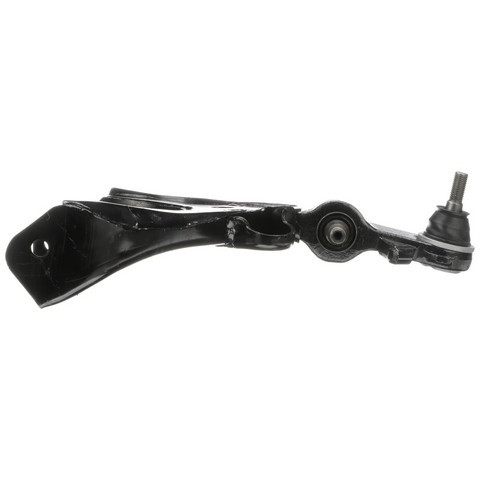

Delphi TC6331 front right lower control arm with ball joint for the 2008-2009 Chevrolet Trailblazer and other vehicles connects the wheel to the frame and moves with suspension travel. The ball joint is built into the arm, so this control arm and ball joint assembly replaces both in one piece.
- Control arm withstands temperatures below -40 degrees C and over 120 degrees C and 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on each control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each control arm
Quick facts
- Part: Delphi TC6331 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2008-2009 Chevrolet Trailblazer and other vehicles
- Position: Front right lower
- Condition: New
A clunk over bumps, loose or wandering steering, or uneven tire wear can go with a worn lower arm or ball joint, though other suspension parts can produce similar symptoms. Before replacing it, look the arm over with the engine off for cracks, a torn ball joint boot or leaking grease, and leave play testing to a shop.
Fits
It fits as a control arm for the 2008-2009 Chevrolet Trailblazer, the 2008-2009 GMC Envoy and the 2008 Isuzu Ascender. This listing is one arm for the front right side, which takes one; the front left is a separate part, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: Front right lower
- Quantity for this side: 1
Build and materials
- Type: control arm with ball joint
- Ball studs: machined to micron tolerances
- Construction: robot welded
- Finish: anti-corrosion protection
- Condition: New
Interchange: 521-972 · 25 78 4240 · 8-25784-240-0
CB91264 · CB91264PR · RK621315 · CMS501058 · GS501058
This part cross-references / interchanges with the following part numbers:
521-972, 25 78 4240, 8-25784-240-0, CB91264, CB91264PR, RK621315, CMS501058, GS501058
Frequently Asked Questions
Is this lower control arm right for the 2008-2009 Chevrolet Trailblazer?
Yes. Delphi TC6331 is the front right lower control arm with ball joint for the 2008-2009 Chevrolet Trailblazer. The front left side is a separate part.
Does this Delphi control arm come with the ball joint attached?
Yes. The ball joint is part of this front right lower arm, so one piece replaces both. Its ball stud is machined to micron tolerances.
What corrosion and temperature testing does this control arm go through?
Delphi control arms are exposed to 720 hours of salt spray and withstand temperatures below -40 degrees C and over 120 degrees C. Anti-corrosion protection is applied to each part.
How is Delphi TC6331 checked for flaws?
Each Delphi control arm goes through 100% crack detection and ultrasonic flaw detection. The arms are robot welded for consistent quality.
Is CB91264 an interchange number for this control arm?
Yes. CB91264 is listed as an interchange number for Delphi TC6331, along with 521-972, RK621315 and the others on the Interchange line.
