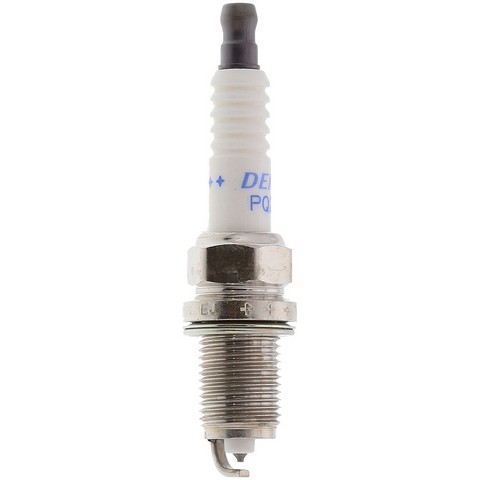

DENSO Auto Parts 3117 spark plug for the 1988-1991 Toyota Camry V6 2.5L, the 1992-1993 Camry V6 3.0L and other vehicles ignites the air-fuel mixture in the cylinder. The platinum is OE grade, and the plug is made to strict OE performance, durability and emissions standards.
- Double Platinum plug with platinum on both the center and ground electrodes
- Housing with machine-rolled threads for a secure fit
- Durability over 60,000 miles with sustained performance over the plug's life
- Pre-set gap of 1.1 mm
- 5000 ohm resistance
Quick facts
- Part: DENSO Auto Parts 3117 spark plug
- Fits: the 1988-1991 Toyota Camry V6 2.5L, the 1992-1993 Camry V6 3.0L and other vehicles
- Condition: New
A worn plug can show up as hard starting, a rough idle or a misfire. Before you replace the plugs, rule out a weak ignition coil, a vacuum leak or a fuel problem, since any of them can also produce a misfire. For spark plug replacement on the 1988-1991 Toyota Camry V6 2.5L, plan on six plugs.
Fits
The 1988-1991 Toyota Camry V6 2.5L, the 1992-1993 Camry V6 3.0L and the 1985-1988 Nissan Maxima V6 3.0L are among the vehicles this spark plug fits, and it fits others as well. It is also a spark plug for the 1992-1993 Lexus ES300 V6 3.0L.
Specifications
Fit and size
- Thread diameter: 14.0 mm
- Reach: 19.0 mm
- Hex size: 16 mm
- Seat type: Flat
- Pre-gap size: 1.1 mm
- Manufacturer heat range: 20
- Quantity per vehicle: varies by engine
Build and materials
- Center electrode: platinum tip, copper core
- Ground electrode: one, platinum chip tip, nickel core
- Ground configuration: Standard
- Resistance: 5000 ohms
- Condition: New
- Country of origin: Japan
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
PQ20R, 22401-01P16, 22401-02P16, 18218200016, 18218200018, 98079-561-48, 98079-561-58, 98079-561-58S, 0000-18-F220, F220-18-110, F221-18-110, 30 52 0467, 59 58 798, 91 17 565, 91 39 643, 90919-01127, 90919-01127-83
Frequently Asked Questions
Is the DENSO Auto Parts 3117 a spark plug for the 1988-1991 Toyota Camry V6 2.5L?
Yes, DENSO Auto Parts 3117 fits the 1988-1991 Toyota Camry V6 2.5L and the 1992-1993 Camry V6 3.0L. For any other car, look up its year and engine in the "Vehicles it fits" section.
Will this spark plug work in a 1985-1988 Nissan Maxima V6 3.0L?
Yes. DENSO Auto Parts 3117 fits the 1985-1988 Nissan Maxima V6 3.0L, which takes six plugs.
What thread size and reach does the DENSO 3117 have?
This plug has a 14.0 mm thread diameter, a 19.0 mm reach, a 16 mm hex and a flat seat. It comes pre-gapped at 1.1 mm.
Which electrodes on this Double Platinum spark plug are platinum?
Both. The center electrode has a platinum tip and a copper core, and the ground electrode has a platinum chip and a nickel core.
Does the DENSO 3117 have a resistance rating?
Yes. This spark plug is listed with a resistance of 5000 ohms.
