Front Brake Rotor for 2006-2018 Toyota RAV4 & More - Bosch 50011309

$70.99

Vehicles this part fits

    Part number: 50011309
    UPC: 077212107230
    Condition: New
    Weight: 14.00 LBS
    Item Package Quantity: 1
    $70.99
    Adding to cart… The item has been added

    Have questions?

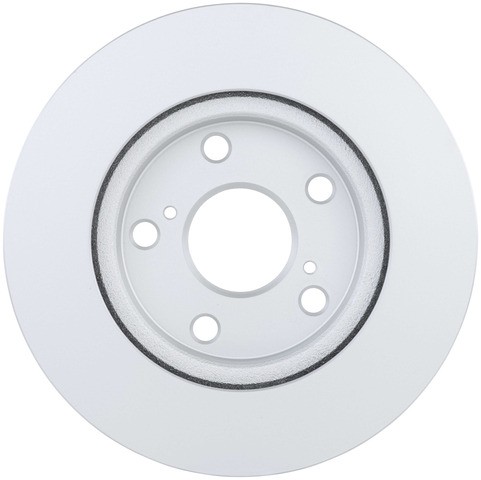

    Bosch Disc Brake Rotor P/N:50011309
    Bosch Disc Brake Rotor P/N:50011309
    $70.99
    $70.99

    Bosch 50011309 front brake rotor for the 2006-2018 Toyota RAV4 and other vehicles gives the pads a surface to clamp against to slow the wheel. This Bosch QuietCast brake rotor is a vented design sold without a hub assembly.

    • 100% precision balanced for smooth operation and minimal vibration
    • Tight tolerances with industry-low run-out and DTV specifications for a smooth pedal feel without pulsation
    • Heat flowed castings for consistent wear, quiet operation and long life
    • Vented construction with vanes shaped for heat dissipation from the braking system
    • Full coating, including the vanes where applicable, to protect against corrosion
    • Factory engraved edge code with identification and the discard specification

    Quick facts

    • Part: Bosch 50011309 brake rotor
    • Also called: disc brake rotor
    • Fits: the 2006-2018 Toyota RAV4 and other vehicles
    • Position: Front
    • Condition: New

    A worn brake rotor can show up as a pulsing brake pedal, a grinding or squealing noise, or grooves you can see in the rotor face. Before you replace the rotor, rule out worn pads and caliper trouble, which can also make a pedal pulse.

    Fits

    This rotor is listed for a wide range of Toyota, Scion and Lexus models, led by the 2006-2018 Toyota RAV4, the 2012-2017 Toyota Prius v and the 2008-2015 Scion xB. If your car is not named here, look it up in the "Vehicles it fits" section. The 2006-2018 Toyota RAV4 takes two front rotors and this listing is one, so the other side of that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Center bore diameter: 62 mm
    • Thickness: 25 mm

    Build and materials

    • Construction: Vented
    • Rotor only, without hub assembly
    • Coating: full coating, including the vanes where applicable
    • ABS sensor ring: for trouble-free ABS and traction control operation
    • Balance: 100% precision balanced
    • Condition: New

    Interchange: 4351242040

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4351242040

    Frequently Asked Questions

    Is Bosch 50011309 the right brake rotor for the 2013-2018 Toyota RAV4?

    Yes. Bosch 50011309 is listed for the 2006-2018 Toyota RAV4: L4-2.4L in 2006-2008, L4-2.5L in 2009-2012 and the 2013-2018 models too.

    What center bore and thickness do these Bosch QuietCast rotors have?

    Bosch 50011309 has a 62 mm center bore and is 25 mm thick, with vented construction.

    Does this front rotor have ABS sensor rings?

    Yes. The rotor has ABS sensor rings for trouble-free ABS/TCS operation on ABS/TCS equipped vehicles.

    Does this Bosch brake rotor come with the wheel hub?

    No. This listing is the rotor only, without a hub assembly, and it is one rotor for one side of the axle.

    Where do I find the discard specification on this Bosch QuietCast Premium disc brake rotor?

    The rotor has a factory engraved edge code that carries its identification and the discard specification.
