Rear Brake Rotor for 2006-2012 Ford Fusion & More - Centric 121.45064

$22.99
WARNING:California Proposition 65▾
Sold out

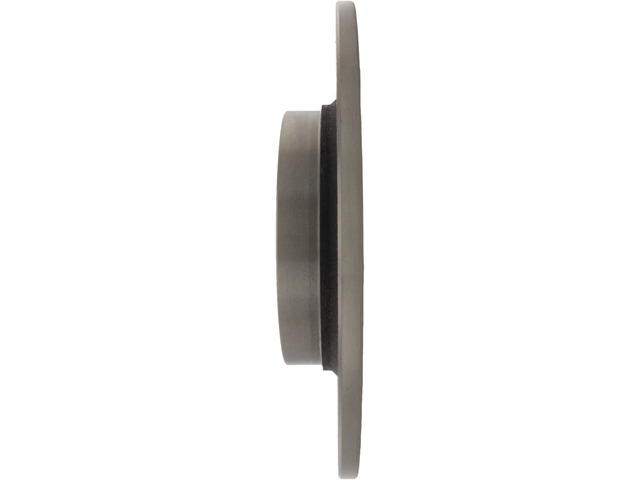

Centric Parts Disc Brake Rotor 121.45064
Centric Parts Disc Brake Rotor 121.45064

Vehicles this part fits
    Part number: 121.45064
    UPC: 805890198833
    Condition: New
    Weight: 9.35 LBS
    Item Package Quantity: 1
    $22.99

    Out of stock

    Have questions?

    Ask an Expert
    Centric Parts Disc Brake Rotor P/N:121.45064
    Centric Parts Disc Brake Rotor P/N:121.45064
    $22.99
    $22.99

    Centric 121.45064 rear brake rotor for the 2006-2012 Ford Fusion and other vehicles gives the rear pads a surface to clamp against. This Centric brake rotor turns with the wheel while the pads squeeze it to slow the car.

    • Solid, non-vented construction
    • Smooth, non-directional friction surface
    • Cast iron material
    • Floating disc mounting

    Quick facts

    • Part: Centric 121.45064 brake rotor
    • Also called: disc brake rotor
    • Fits: 2006-2012 Ford Fusion and other vehicles
    • Position: Rear
    • Material: Cast iron
    • Condition: New

    Vibration or pulsing through the pedal when braking, grooves in the rotor face, or wear past the discard thickness in the specifications can mean a rotor needs replacing. A sticking caliper or worn pads can be behind similar signs, so find the cause before you buy.

    Fits

    Besides the 2006-2012 Ford Fusion, the rotor fits the 2010-2015 Mazda MX-5, the 2006-2015 Mazda MX-5 Miata and many other models. Open the "Vehicles it fits" section to check your exact model and engine. Rotors are sold one per listing, and the other rear rotor is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Outside diameter: 279.5 mm (11.004 in)
    • Center hole diameter: 71.7 mm (2.823 in)
    • Bolt circle: 114.3 mm (4.5 in), 5 lug holes
    • Lug hole diameter: 12.93 mm (0.509 in)
    • Mounting bolt holes: 5, 13 mm (0.511 in)
    • Nominal thickness: 10 mm (0.394 in)
    • Discard thickness: 8 mm (0.315 in)
    • Overall height: 40.2 mm (1.583 in)

    Build and materials

    • Type: Solid
    • Surface: Smooth, non-directional
    • Material: Cast iron
    • Disc mounting: Floating
    • ABS tone ring: not included
    • Condition: New

    In the box

    One rear brake rotor; the rear axle takes two. Bearings and the ABS tone ring are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Are these Ford Fusion rotors for the 2006-2012 model years?

    Yes. Centric 121.45064 is a rear brake rotor for the 2006-2012 Ford Fusion, and the rear axle takes two. Use the "Vehicles it fits" section to check another model or engine.

    Do Centric rotors like this one come with wheel bearings or an ABS tone ring?

    No. Centric 121.45064 is one rear rotor; wheel bearings and the ABS tone ring are not included.

    Is this disc brake rotor solid or vented?

    It is solid, not vented. The rotor has a smooth, non-directional surface and a floating disc mounting.

    How thin can this rear rotor wear before it needs replacing?

    The discard thickness is 8 mm (0.315 in), against a nominal 10 mm (0.394 in) when new. A rotor measured at or below 8 mm is due for replacement.

    What are the bolt circle and center hole sizes on this rear rotor?

    Centric 121.45064 has five lug holes on a 114.3 mm (4.5 in) bolt circle, a 71.7 mm (2.823 in) center hole and a 279.5 mm (11.004 in) outside diameter.
