Brake Rotor for 1989-2004 Blue Bird TC2000 & More - Centric 121.83008

$218.99
WARNING:California Proposition 65▾

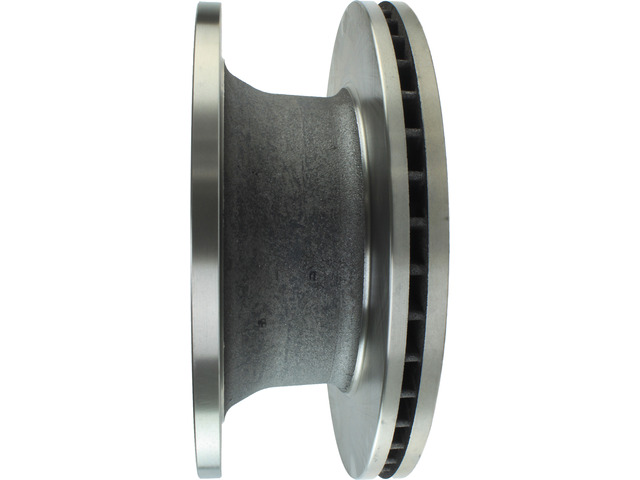

Centric Parts Disc Brake Rotor 121.83008
Centric Parts Disc Brake Rotor 121.83008

Vehicles this part fits
    Part number: 121.83008
    UPC: 805890492122
    Condition: New
    Weight: 59.30 LBS
    Item Package Quantity: 1
    $218.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Centric Parts Disc Brake Rotor P/N:121.83008
    Centric Parts Disc Brake Rotor P/N:121.83008
    $218.99
    $218.99

    Centric 121.83008 brake rotor for the 1989-2004 Blue Bird TC2000 and other vehicles gives the brake pads a surface to clamp on and slow the wheel. This Centric brake rotor is vented and has a smooth surface.

    • Nominal thickness of 36.45 mm with a 33.53 mm discard thickness
    • Five stud/lug holes on a 323.9 mm (12.752 in) bolt circle
    • Disc mounting behind the hub
    • 381 mm (15 in) outside diameter

    Quick facts

    • Part: Centric 121.83008 brake rotor
    • Also called: disc brake rotor
    • Fits: 1989-2004 Blue Bird TC2000 and other vehicles
    • Position: Front, rear
    • Condition: New

    A pulsing brake pedal, grooves or scoring on the rotor face, or a measured thickness at or below the 33.53 mm discard mark can point to a worn rotor. Noise or vibration alone does not prove the rotor is at fault, since a sticking caliper can feel much the same. This listing is one rotor; one goes on each side of an axle, so order two and fit them together.

    Fits

    This rotor fits the 1989-2004 Blue Bird TC2000, the 1993-2003 Blue Bird SHL TC2000 and the 1986-2001 International 1652SC. If your vehicle is not one of these, look up its year and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Front, rear
    • Quantity per vehicle: 2
    • Outside diameter: 381 mm (15 in)
    • Center hole diameter: 362 mm (14.252 in)
    • Bolt circle: 323.9 mm (12.752 in), 5 lug holes
    • Mounting bolt hole diameter: 19.5 mm (0.768 in)
    • Nominal thickness: 36.45 mm (1.435 in)
    • Discard thickness: 33.53 mm (1.32 in)
    • Overall height: 149.9 mm (5.902 in)

    Build and materials

    • Type: Vented
    • Surface: Smooth
    • Disc mounting: Behind the hub
    • ABS tone ring: not included
    • Condition: New

    In the box

    One brake rotor. Wheel bearings and an ABS tone ring are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is Centric 121.83008 the right rotor for the 1986-2001 International 1652SC?

    Yes. Centric 121.83008 fits the 1986-2001 International 1652SC and has a 381 mm outside diameter. For another vehicle, look up its year and model in the "Vehicles it fits" section.

    Do Centric rotors like this one come with wheel bearings?

    No. Centric 121.83008 is one brake rotor; wheel bearings are not included, and neither is an ABS tone ring.

    Is the Centric Parts disc brake rotor 121.83008 vented or solid?

    It is vented, with a smooth surface. This rotor's nominal thickness is 36.45 mm (1.435 in).

    What is the discard thickness of this 15-inch rotor?

    The discard thickness is 33.53 mm (1.32 in), so a rotor measured at or below that is worn out. New, it is 36.45 mm (1.435 in) thick.

    How many lug holes and what bolt circle does this rotor have?

    This rotor has five lug holes on a 323.9 mm (12.752 in) bolt circle. The center hole is 362 mm (14.252 in).
