Rear Brake Rotor for 2006-2010 Hummer H3 & More - Bosch 12011448

$65.99

Vehicles this part fits

    Part number: 12011448
    UPC: 077212075553
    Condition: New
    Weight: 13.90 LBS
    Item Package Quantity: 1
    $65.99
    Adding to cart… The item has been added

    Have questions?

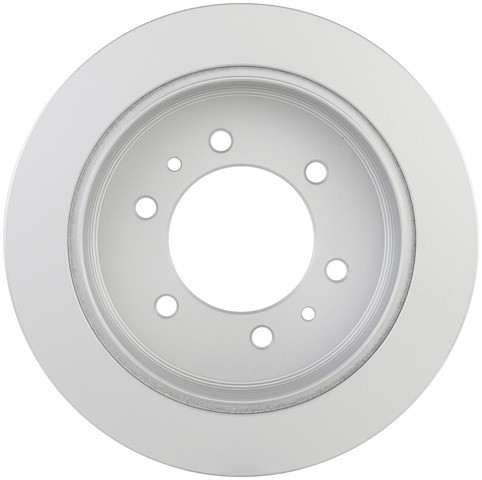

    Bosch Disc Brake Rotor P/N:12011448
    Bosch Disc Brake Rotor P/N:12011448
    $65.99
    $65.99

    Bosch 12011448 rear brake rotor for the 2006-2010 Hummer H3 and other vehicles is the disc the rear brake pads clamp to slow each wheel. The Bosch QuietCast brake rotor is solid and made without a hub.

    • QuietCast line with heat flowed castings that promote consistent wear, quiet operation and long life
    • 100% precision balanced for smooth operation and minimal vibration
    • Extremely tight tolerances with low run-out and DTV specifications for a smooth pedal feel with no pulsation
    • Geomet disc finish and full coating to protect against corrosion
    • Engraved edge code with identification and the discard specification

    Quick facts

    • Part: Bosch 12011448 brake rotor
    • Also called: disc brake rotor
    • Fits: 2006-2010 Hummer H3 and other vehicles
    • Position: Rear
    • Condition: New

    A scored or thin rear rotor, a pulsing brake pedal or noise while braking can all mean rotor wear. Before you replace the rotor, rule out a seized caliper, worn pads and a damaged wheel bearing, since those can produce similar symptoms.

    Fits

    It fits the 2006-2010 Hummer H3 and the 2009-2010 Hummer H3T. The 2006-2010 Hummer H3 takes two. This listing is one rear rotor, and the other rotor on the rear axle is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Rear
    • Quantity per vehicle: 2
    • Outside diameter: 312 mm
    • Center hole diameter: 101 mm
    • Bolt circle: 139.7 mm, 6 bolt holes
    • Nominal thickness: 12 mm
    • Discard thickness: 10.5 mm

    Build and materials

    • Construction: Solid, without hub assembly
    • Disc finish: Geomet
    • Rust resistant coating: Yes
    • ABS sensor ring: for trouble-free ABS and traction control operation
    • Balancing: 100% precision balanced
    • Condition: New

    In the box

    One rear brake rotor, without the hub assembly.

    Interchange: 15111376

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    15111376

    Frequently Asked Questions

    Is this Bosch brake rotor right for the 2009-2010 Hummer H3T?

    Yes. Bosch 12011448 is a rear rotor for the 2009-2010 Hummer H3T and for the 2006-2010 Hummer H3.

    Is the Bosch QuietCast premium disc brake rotor coated against rust?

    Yes. Bosch 12011448 has a Geomet disc finish and a rust resistant coating.

    Does this Bosch disc rotor come with the hub?

    No. Bosch 12011448 is a rotor without the hub assembly, and the listing is one rear rotor.

    When are Bosch QuietCast rotors ready to be replaced?

    When the rotor wears down to its discard thickness of 10.5 mm; a new one measures 12 mm. The edge code on the rotor includes the discard specification.

    What are the diameter and bolt pattern of this rear rotor?

    The outside diameter is 312 mm and the center hole is 101 mm. The bolt circle is 139.7 mm with 6 bolt holes.
