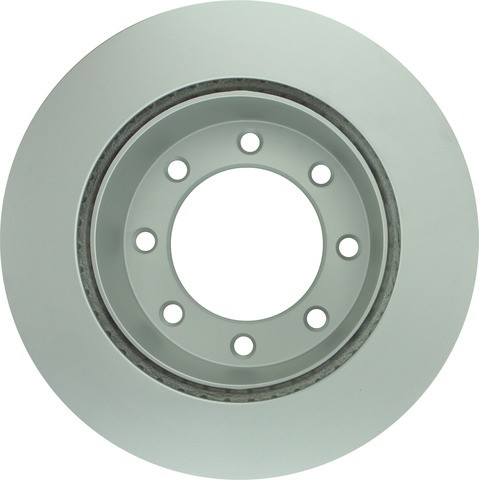

Bosch 20010461 rear brake rotor for the 2005-2012 Ford F-250 Super Duty and other vehicles gives the brake pads a vented surface to grip and slow the wheel.
- Bosch QuietCast rotors are 100% precision balanced to run smoothly and minimize vibration
- Tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
- Heat flowed castings promote consistent wear for quiet operation and long life
- Vented construction with a vane configuration for proper heat dissipation from the braking system
- Full coating, including the vanes where applicable, protects against corrosion
- Factory engraved edge code includes identification and the discard specification
Quick facts
- Part: Bosch 20010461 brake rotor
- Also called: disc brake rotor
- Fits: 2005-2012 Ford F-250 Super Duty and other vehicles
- Position: Rear
- Condition: New
A pulsing brake pedal, grooves, or heavy rust on the rotor face can mean a rotor is worn. Other brake parts can produce similar signs, so during a brake service with the engine off, measure the rotor against the discard value engraved on its edge before you decide. These vehicles take two rear rotors, one on each side of the axle, and the pair is normally replaced together; this listing is one rotor.
Fits
This rotor is a direct-fit replacement for the 2005-2012 Ford F-250 Super Duty and the 2005-2012 Ford F-350 Super Duty.
Specifications
Fit and size
- Position: rear
- Quantity per vehicle: 2
- Center bore diameter: 127 mm
- Nominal thickness: 34 mm
Build and materials
- Construction: vented
- Rotor only, without hub assembly
- Balance: 100% precision balanced
- Coating: full coating including vanes (where applicable)
- ABS sensor ring: for trouble-free ABS and traction control operation
- Condition: new
Interchange: 5U2Z1V125ME
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is this Bosch brake rotor the right rear rotor for the 2005-2012 Ford F-250 Super Duty?
Yes. Bosch 20010461 is a rear rotor listed for the 2005-2012 Ford F-250 Super Duty, and these trucks take two, one on each side of the rear axle.
Does this Bosch disc rotor come with the wheel hub?
No. Bosch 20010461 is a rotor without a hub assembly, so no hub is part of this listing.
What thickness is the Bosch QuietCast brake rotor?
This vented rear rotor has a nominal thickness of 34 mm and a center bore diameter of 127 mm.
What coating does the Bosch QuietCast Premium disc brake rotor have?
The rotor carries a full coating that also covers the vanes where applicable, so its surfaces are protected against corrosion.
Where is the discard specification on this rear rotor?
Bosch 20010461 has a factory engraved edge code that includes identification and the discard specification. A rotor measured below that value is due for replacement.
