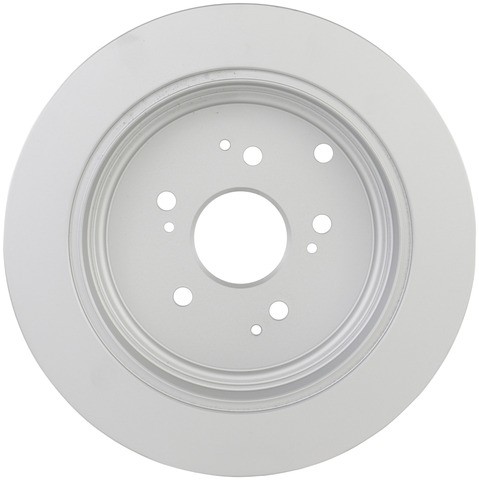

Bosch 26010746 rear brake rotor for the 2003-2008 Honda Pilot and other vehicles is the disc the brake pads clamp against to slow the wheel. This Bosch QuietCast brake rotor is a solid rotor sold without a hub assembly.
- Bosch QuietCast line, produced with 3D laser measuring and repeated inspection
- 100% precision balanced for smooth operation and less vibration
- Tight tolerances with low run-out and DTV specifications for a smooth pedal feel with no pulsation
- Heat flowed castings for consistent wear, quiet operation and long life
- Full coating to protect against corrosion
- Factory engraved edge code with identification and discard specification
Quick facts
- Part: Bosch 26010746 brake rotor
- Also called: disc brake rotor
- Fits: 2003-2008 Honda Pilot and other vehicles
- Position: Rear
- Condition: New
A worn rear rotor can show up as pedal pulsation, squealing or grinding when braking, or grooves on the rubbing face. Pads, calipers or other brake parts can cause similar signs. During a brake service, with the car parked and the brakes cool, look the rotor over for grooves and cracks and measure its thickness against the discard specification.
Fits
This rear brake rotor is a direct-fit replacement for the 2003-2008 Honda Pilot and the 2001-2006 Acura MDX, and each takes one on each side of the rear axle. This listing is one rotor, so the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2, one on each side of the axle
- Nominal thickness: 11.1 mm
- Center bore diameter: 64.1 mm
Build and materials
- Construction: Solid
- Balancing: 100% precision balanced
- ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
- Coating: full coating for corrosion protection
- Edge code: factory engraved, with identification and discard specification
- Condition: New
In the box
One rear brake rotor, sold without a hub assembly.
Interchange: 42510S3VA01
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does this Bosch brake rotor fit the 2003-2008 Honda Pilot?
Yes. Bosch 26010746 is a rear brake rotor for the 2003-2008 Honda Pilot, and it also fits the 2001-2006 Acura MDX.
Are these Bosch QuietCast rotors solid or vented?
This rear rotor is solid construction, not vented. It has a nominal thickness of 11.1 mm and a 64.1 mm center bore.
Does the Bosch QuietCast brake rotor come with a hub?
No. Bosch 26010746 is a rotor only, without a hub assembly. This listing is one rear rotor.
Does the Bosch QuietCast Premium disc brake rotor have an ABS sensor ring?
Yes. It has ABS sensor rings for trouble-free ABS and traction control operation on vehicles equipped with those systems.
When is this Bosch rear brake rotor due for replacement?
During a brake service, measure the cool rotor and compare it with the discard specification in its factory engraved edge code. Deep grooves, cracks or pedal pulsation are other signs a shop can look into.
