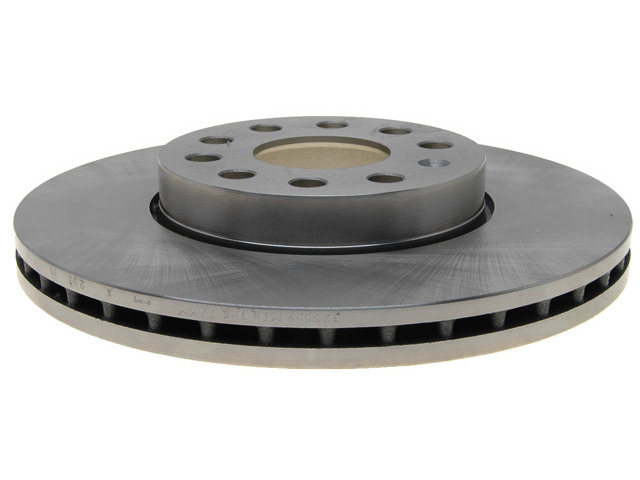

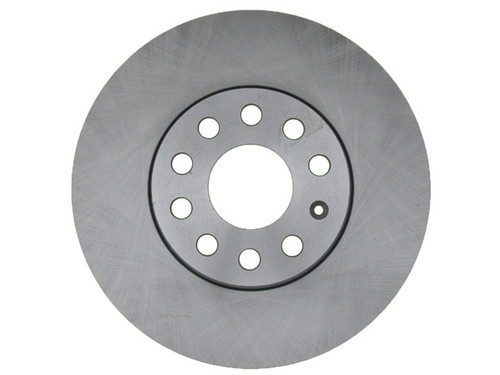

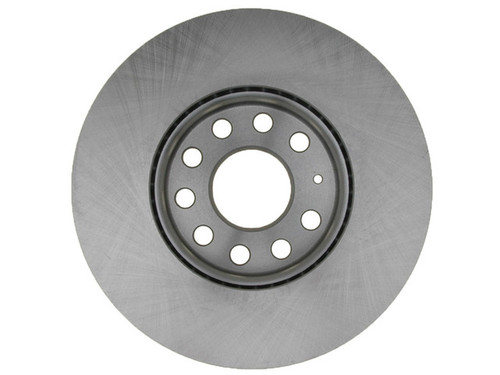

Built for dependable everyday braking, the Raybestos R-Line Brake Rotor 980456R is a vented front rotor developed from OE samples for OE fit, form, and function. It fits many vehicles, among them the 2005-2025 Volkswagen Jetta, 2010-2021 Volkswagen Golf and 2015-2020 Audi A3 Quattro. See the Buyer's Guide tab for the full list.
Raybestos engineers its R-Line rotors and drums for everyday driving. This full-cast, cast iron rotor is a direct-fit replacement for the listed applications.
- OE fit, form, and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: Meets the SAE standard for tensile strength, supporting structural integrity.
- Low initial lateral runout and thickness variation: Held to small runout and thickness-variation limits, designed to help reduce pedal pulsation and brake noise and extend pad life.
- Mill-balanced edges: Mill balanced and 100 percent validated to help minimize thickness variation, which is intended to reduce vibration for smoother stops.
Specifications: 11.335 in (287.9 mm) outside diameter; 0.98 in (24.9 mm) nominal thickness; 0.866 in (22 mm) discard thickness; 1.945 in (49.4 mm) overall height; 2.56 in (65 mm) center hole; 6.35 in (161.3 mm) inside diameter; 5 mounting bolt holes on a 4.409 in (112 mm) bolt circle; smooth, non-directional braking surface; conventional (non-drum-in-hat) design. ABS tone ring not included.
Sold individually. The listed applications use two, so replacing both front rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China.
