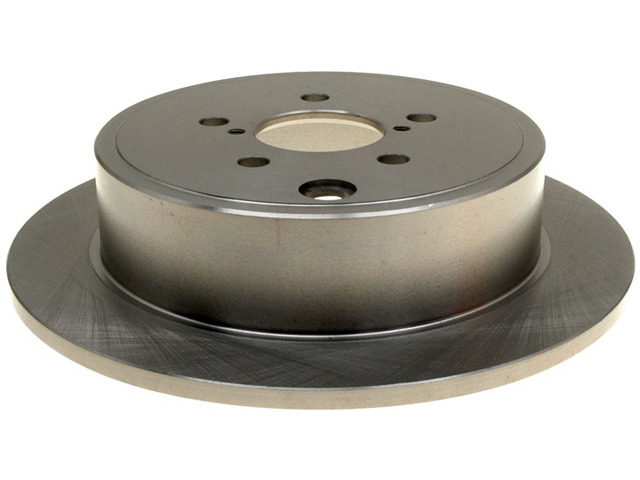

Bring back smooth, quiet stops at the rear axle with the Raybestos R-Line Disc Brake Rotor (P/N 980634R), a rear disc brake rotor developed from OE samples and engineered for everyday driving. It drops in as a direct-fit replacement for the 2008-2014 Subaru Impreza, 2009-2013 Subaru Forester, 2010-2014 Subaru Legacy and Outback, 2012-2014 Subaru WRX, 2013-2016 Scion FR-S, and 2013-2016 Subaru BRZ (all engines).
This solid (non-vented), drum-in-hat rotor has a non-directional, smooth cast iron braking surface and measures 11.26 in (286 mm) outside diameter with five mounting bolt holes on a 100.1 mm bolt circle. The ABS tone ring is not included; transfer or replace it as directed by the vehicle's service procedure. Sold individually — the listed applications use two per rear axle, so order two and replace both sides together as a matched set for even, balanced braking. Country of origin: China. Manufacturer part number 980634R.
Which vehicles does this rotor fit?
It's a direct-fit rear rotor for the 2008-2014 Subaru Impreza, 2009-2013 Forester, 2010-2014 Legacy and Outback, 2012-2014 WRX, 2013-2016 Scion FR-S, and 2013-2016 Subaru BRZ (all engines). See the Buyer's Guide tab.
Is this a front or rear rotor?
The catalog lists it as a rear disc brake rotor. It's a solid (non-vented), drum-in-hat design with an integral hat that houses the parking brake shoes.
What size is this rotor?
It has an 11.26 in (286 mm) outside diameter, 9.9 mm nominal thickness, a 57.9 mm center hole, and five mounting bolt holes on a 100.1 mm bolt circle. Discard thickness is 8.4 mm (0.33 in).
Do I need to replace both rear rotors?
They're sold individually, but the listed applications use two per axle. Replacing both sides together as a matched set is recommended for even, balanced braking.
Is an ABS tone ring included?
No. The ABS tone ring is not included with this rotor; transfer or replace it as directed by the vehicle's service procedure.
