Front Left Brake Rotor for 2018-2020 Lexus IS300 & More - ADVICS A6F014U

$138.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: A6F014U
    EAN: 4562372116070
    Condition: New
    Weight: 25.20 LBS
    Sold as: 1 per listing
    $138.99

    Out of stock

    Have questions?

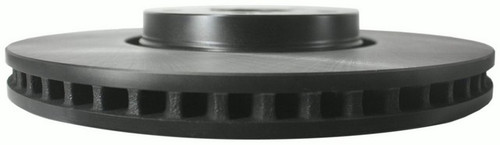

    ADVICS Disc Brake Rotor P/N:A6F014U
    ADVICS Disc Brake Rotor P/N:A6F014U
    $138.99
    $138.99

    ADVICS A6F014U front left brake rotor for the 2018-2020 Lexus IS300 4-cylinder 2.0L and other vehicles is the disc the brake pads clamp against to slow the wheel. It is one of the ADVICS brake rotors, built as an OE replacement to OEM weight, vane count and air gap.

    • Sold in the ADVICS OE Replacement Disc Brake Rotor line
    • Vented design that lets air flow freely and efficiently
    • High carbon metallurgy for thermal stability, which reduces the chance of warping and supports longer pad and rotor life
    • Corrosion protection coating on the rotor

    Quick facts

    • Part: ADVICS A6F014U brake rotor
    • Also called: disc brake rotor
    • Fits: 2018-2020 Lexus IS300 4-cylinder 2.0L and other vehicles
    • Position: Front left
    • Material: High carbon
    • Condition: New

    Pedal pulsation, a shake through the steering wheel when braking or grooves worn into the rotor face can mean a rotor is worn. A sticking caliper or worn pads can be behind those signs too, so find the cause before buying. Front rotors are normally replaced together; this listing is one rotor for the front left, the front right is a separate part, and the front axle takes one on each side.

    Fits

    The vehicles it fits include the 2018-2020 Lexus IS300 4-cylinder 2.0L, the 2016-2017 Lexus IS200t and, among IS350 rotors, the 2014-2019 Lexus IS350.

    Specifications

    Fit and size

    • Position: front left
    • Quantity: 1 per listing
    • Outside diameter: 334.0 mm (13.15 in)
    • Center hole diameter: 62 mm
    • Bolt circle: 114.3 mm (4.5 in), 5 lug holes
    • Nominal thickness: 30.0 mm (1.181 in)
    • Discard thickness: 27.0 mm (1.063 in)
    • Overall height: 50.9 mm (2.004 in)

    Build and materials

    • Type: vented
    • Surface: smooth, non-directional finish
    • Material: high carbon
    • Coating: corrosion protection coating
    • ABS tone ring: not included
    • Condition: new
    • Country of origin: China

    In the box

    One brake rotor. The ABS tone ring is not included.

    Interchange: 1407-80441 · 120.44138 · 604-75052D
    YH200510 · 31450 · 71905 · 50011342 · BR900576 · 4351622010 · 900576 · JBR1150 · JBR1150XPR · 980493 · 980493FZN · BD180165 · BD180328

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    YH200510, 31450, 71905, 1407-80441, 50011342, 120.44138, BR900576, 604-75052D, 4351622010, A6F014U, 900576, JBR1150, JBR1150XPR, 980493, 980493FZN, BD180165, BD180328

    Frequently Asked Questions

    Is this the IS300 brake rotor for a 2018-2020 Lexus IS300 4-cylinder 2.0L?

    Yes, ADVICS A6F014U is the front left rotor for the 2018-2020 Lexus IS300 4-cylinder 2.0L. If your car is a different one, look up its year, make and model in the "Vehicles it fits" section.

    Is this the right front left rotor when I'm doing brake pads and rotors on a 2014-2019 Lexus IS350?

    Yes, ADVICS A6F014U is the front left rotor for the 2014-2019 Lexus IS350. This listing is one rotor only; brake pads are sold separately.

    What bolt pattern and center hole does this vented rotor have?

    It has 5 lug holes on a 114.3 mm (4.5 in) bolt circle, a 62 mm center hole and a 334.0 mm (13.15 in) outside diameter.

    Does this front left rotor come with an ABS tone ring?

    No. The ABS tone ring is not included; the listing is one vented front left rotor with a smooth surface.

    At what thickness is this rotor worn out?

    Discard thickness is 27.0 mm (1.063 in). A new rotor measures 30.0 mm (1.181 in), so one measured at or under 27.0 mm is due for replacement.
