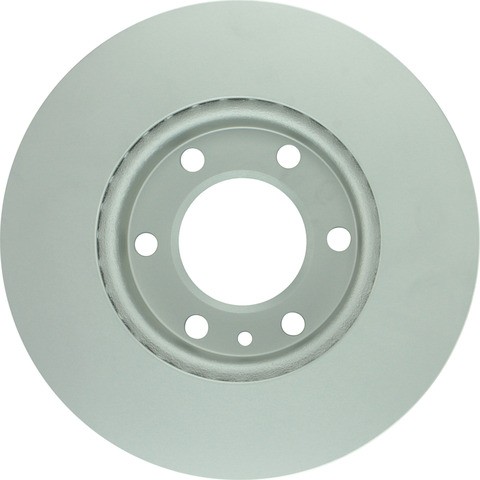

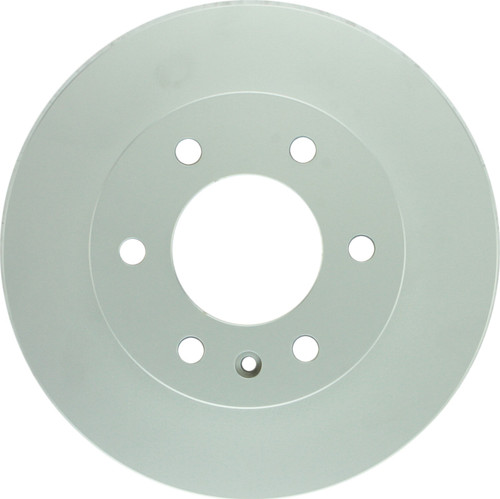

Bosch 16011499 front brake rotor for the 2010-2021 Mercedes-Benz Sprinter 2500 and other vehicles gives the pads a vented surface to grip when you brake. This Bosch QuietCast Premium disc brake rotor is sold without a hub assembly.
- 100% precision balanced for smooth operation and minimal vibration
- Tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
- Heat flowed castings for consistent wear and quiet operation
- Vane configuration designed to dissipate braking heat
- Full coating, including the vanes where applicable, protects against corrosion
- Factory engraved edge code with identification and discard specification
Quick facts
- Part: Bosch 16011499 brake rotor
- Also called: disc brake rotor
- Fits: 2010-2021 Mercedes-Benz Sprinter 2500 and other vehicles
- Position: Front
- Condition: New
A pulsing brake pedal, grooves or scoring on the rotor face, or squealing can mean a rotor is worn. A sticking caliper, worn pads or a leaking brake hose can produce those symptoms too, so find the cause before you buy a rotor.
Fits
This vented front rotor also fits the 2019-2021 Mercedes-Benz Sprinter 1500 and the 2010-2018 Mercedes-Benz Sprinter 3500. A pair goes on the front axle, one rotor per side, and this listing is one of them; the other side of that axle is normally done at the same time. If your van is a different model, open the "Vehicles it fits" section and check its exact year and engine.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Nominal thickness: 28 mm
- Center bore diameter: 85 mm
Build and materials
- Construction: vented, rotor without hub assembly
- Balancing: 100% precision balanced
- Coating: full coating, including the vanes where applicable
- ABS sensor ring: for trouble-free ABS and traction control operation
- Condition: new
In the box
One front brake rotor. A hub assembly is not included.
Interchange: 68006716AA · 9064210012
Frequently Asked Questions
Does this Bosch 16011499 front rotor fit the 2019-2021 Mercedes-Benz Sprinter 1500?
Yes. Bosch 16011499 is a front rotor listed for the 2019-2021 Mercedes-Benz Sprinter 1500, two per vehicle, one on each side of the front axle.
Does this Bosch brake rotor come with a hub?
No. This listing is one front rotor without a hub assembly, so no hub is included.
Is this Bosch disc rotor vented or solid, and how thick is it?
This rotor is vented, with a 28 mm nominal thickness and an 85 mm center bore.
What does the ABS sensor ring on the Bosch QuietCast rotors do?
The ABS sensor ring allows trouble-free operation of the ABS and traction control on vehicles equipped with them.
Where is the discard specification on the Bosch QuietCast brake rotor?
Bosch 16011499 has a factory engraved edge code that carries the rotor's identification and its discard specification.
