Front Brake Rotor for 2010-2011 Ford Ranger - Bosch 20011518

$117.99

Vehicles this part fits

    Part number: 20011518
    UPC: 077212082414
    Condition: New
    Weight: 23.14 LBS
    Item Package Quantity: 1
    $117.99
    Adding to cart… The item has been added

    Have questions?

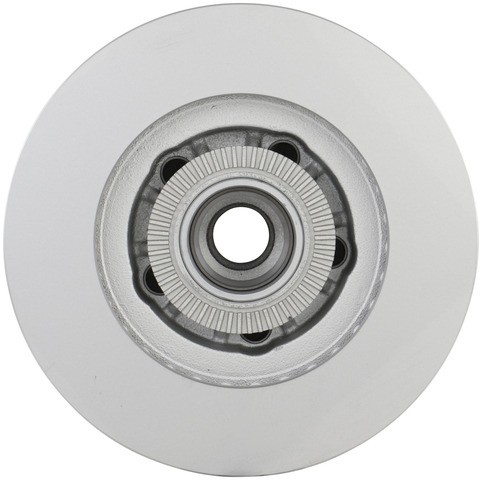

    Bosch Disc Brake Rotor P/N:20011518
    Bosch Disc Brake Rotor P/N:20011518
    $117.99
    $117.99

    Bosch 20011518 front brake rotor for the 2010-2011 Ford Ranger gives the pads a vented surface to clamp against when the truck slows. The Bosch brake rotor is made using 3D laser measuring and repeated inspection.

    • 100% precision balanced to minimize vibration
    • Extremely tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
    • Heat flowed castings for consistent wear, quiet operation and long life
    • Vane configuration designed for heat dissipation from the braking system
    • Full coating, including the vanes where applicable, protects against corrosion
    • Factory engraved edge code identifies the rotor and gives its discard specification

    Quick facts

    • Part: Bosch 20011518 brake rotor
    • Also called: disc brake rotor
    • Fits: 2010-2011 Ford Ranger
    • Position: Front
    • Material: Iron alloy
    • Condition: New

    A pulsing brake pedal, shaking under braking, grinding or deep grooves in the rotor face can mean a rotor is worn. A sticking caliper or worn pads can be behind the same signs, so find the cause before you buy. This listing is one rotor, and the front pair is normally replaced together.

    Fits

    It fits the 2010-2011 Ford Ranger, including the L4-2.3L.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Outside diameter: 286.6 mm
    • Center bore diameter: 65.011 mm
    • Bolt circle: 114.3 mm, 5 bolt holes
    • Nominal thickness: 26 mm
    • Discard thickness: 24.5 mm

    Build and materials

    • Construction: vented
    • Brake surface: smooth, directional
    • Material: iron alloy
    • Disc finish: Geomet
    • Hat finish: coated
    • ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
    • Condition: new

    In the box

    One front brake rotor; the 2010-2011 Ford Ranger takes two.

    Interchange: AL5Z1102A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    AL5Z1102A

    Frequently Asked Questions

    Are these the front rotors for the 2010-2011 Ford Ranger?

    Yes. Bosch 20011518 is a front brake rotor for the 2010-2011 Ford Ranger, and the truck takes two, one for each front wheel.

    Does this Bosch QuietCast Premium disc brake rotor have an ABS sensor ring?

    Yes. This rotor's ABS sensor ring is there for trouble-free ABS and traction control operation on vehicles equipped with those systems.

    What size is the Bosch QuietCast brake rotor?

    Bosch 20011518 measures 286.6 mm outside diameter and 26 mm nominal thickness, with a 65.011 mm center bore and 5 bolt holes on a 114.3 mm bolt circle.

    At what thickness are Bosch QuietCast rotors worn out?

    The discard thickness is 24.5 mm, against a 26 mm nominal thickness. Replace the rotor once it measures down to 24.5 mm; the edge code also carries this discard spec.

    Is this front brake rotor coated against rust?

    Yes. The disc has a Geomet finish and the hat is coated, and the Premium Full Coating reaches the vanes where applicable to protect against corrosion.
