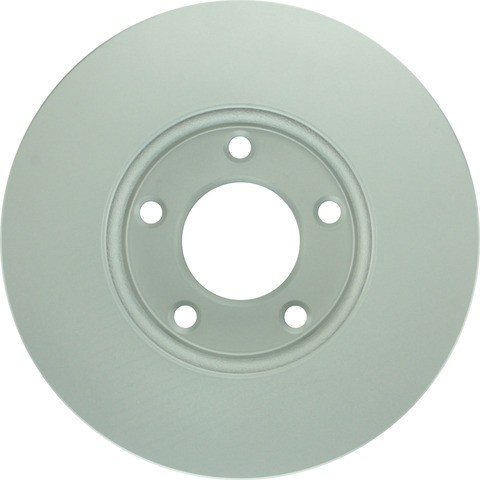

Front Brake Rotor for 2004-2013 Mazda 3 & More - Bosch 34010892

$62.99

Vehicles this part fits

    Part number: 34010892
    UPC: 077212090044
    Condition: New
    Weight: 16.00 LBS
    Item Package Quantity: 1
    $62.99
    Adding to cart… The item has been added

    Have questions?

    Bosch Disc Brake Rotor P/N:34010892
    Bosch Disc Brake Rotor P/N:34010892
    $62.99
    $62.99

    Bosch 34010892 front brake rotor for the 2004-2013 Mazda 3 4-cylinder 2.0L and other vehicles gives the front brake pads a surface to clamp against so the car slows down. The rotor is vented, with a vane configuration made for proper heat dissipation from the braking system.

    • Part of the Bosch QuietCast brake rotor line, made with 3D laser measuring and repeated inspection
    • 100% precision balanced for smooth operation and minimal vibration
    • Extremely tight tolerances with low run-out and DTV specifications for a smooth pedal feel with no pulsation
    • Heat flowed castings promote consistent wear for quiet operation and long life
    • Premium Full Coating protects against corrosion, with the vanes covered where applicable
    • Factory engraved edge code shows the rotor's identification and discard specification

    Quick facts

    • Part: Bosch 34010892 brake rotor
    • Also called: disc brake rotor
    • Fits: 2004-2013 Mazda 3 4-cylinder 2.0L and other vehicles
    • Position: Front
    • Material: Iron alloy

    A pulsing brake pedal, a shaking steering wheel when you brake, or deep grooves in the braking face can mean a front brake rotor is worn. Worn pads, a sticking caliper or a loose wheel bearing can also be behind these complaints, so find the cause before you order a replacement.

    Fits

    This Bosch brake rotor is a direct-fit replacement for the 2004-2013 Mazda 3 4-cylinder 2.0L and the 2011-2013 Mazda 3 Sport 4-cylinder 2.0L, and both take two front brake rotors. This listing is one brake rotor, so order two and fit them together.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 277.9 mm
    • Center bore diameter: 72 mm
    • Bolt circle: 114.3 mm, 5 lug holes
    • Nominal thickness: 25 mm

    Build and materials

    • Construction: Vented
    • Material: Iron alloy
    • Braking surface: Smooth
    • Coating: Geomet
    • ABS sensor ring: for trouble-free ABS and traction control operation on vehicles equipped with ABS/TCS

    In the box

    One front brake rotor, sold without a hub.

    Interchange: C24Y3325XE

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    C24Y3325XE

    Frequently Asked Questions

    Are these the front rotors for the 2004-2013 Mazda 3 4-cylinder 2.0L?

    Yes. Bosch 34010892 fits the front of the 2004-2013 Mazda 3 4-cylinder 2.0L and the 2011-2013 Mazda 3 Sport 4-cylinder 2.0L.

    Are Bosch QuietCast rotors like this one vented?

    Yes. This front brake rotor is vented, with a 277.9 mm outside diameter, a 25 mm nominal thickness and a 114.3 mm bolt circle with 5 lug holes.

    Is this Bosch QuietCast premium disc brake rotor coated?

    Yes. Bosch 34010892 has a Geomet coating, and its Premium Full Coating protects against corrosion, with the vanes covered where applicable.

    Where do I find the discard spec on this front brake rotor?

    The discard specification is part of the factory engraved edge code on the rotor, along with the rotor's identification.

    What signs can mean this vented front brake rotor is worn?

    Brake pedal pulsation, vibration through the steering wheel under braking, or scoring on the smooth braking surface can mean this front brake rotor is worn.
