Front Brake Rotor for 2010-2014 Subaru Outback & More - Bosch 48011480

$92.99

Vehicles this part fits

    Part number: 48011480
    UPC: 077212099603
    Condition: New
    Weight: 23.20 LBS
    Item Package Quantity: 1
    $92.99
    Adding to cart… The item has been added

    Have questions?

    Bosch Disc Brake Rotor P/N:48011480
    Bosch Disc Brake Rotor P/N:48011480
    $92.99
    $92.99

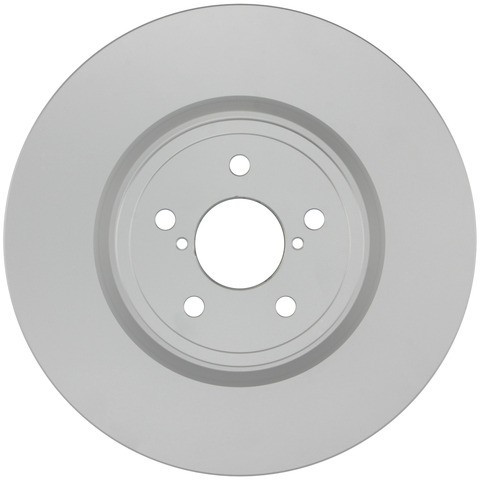

    Bosch 48011480 front brake rotor for the 2010-2014 Subaru Outback H6 3.6L and other vehicles gives the front brake pads a vented surface to press against when you slow down. It replaces a worn or damaged front disc brake rotor.

    • 100% precision balanced for smooth operation and minimal vibration
    • Tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
    • Heat flowed castings for consistent wear, quiet operation and long life
    • Vane configuration designed for heat dissipation from the braking system
    • Full coating, including the vanes where applicable, protects against corrosion
    • Factory engraved edge code includes identification and the discard specification

    Quick facts

    • Part: Bosch 48011480 brake rotor
    • Also called: disc brake rotor
    • Fits: 2010-2014 Subaru Outback H6 3.6L and other vehicles
    • Position: Front
    • Material: Iron Alloy
    • Condition: New

    Pedal pulsation, vibration while braking, or deep grooves and heavy rust on the rotor face can mean a rotor is worn. A sticking caliper or worn brake pads can be behind these signs too, so find out which part is at fault before you buy.

    Fits

    Besides the 2010-2014 Subaru Outback H6 3.6L, this rotor fits the 2014-2018 Subaru Forester H4 2.0L and the 2005-2014 Subaru Legacy. Each of these takes two front rotors. This listing is one rotor, so the other side of the front axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Sold individually: one rotor per listing
    • Nominal thickness: 30 mm
    • Center bore diameter: 58 mm

    Build and materials

    • Construction: Vented, rotor without hub assembly
    • Material: Iron Alloy
    • Coating: Geomet
    • Balance: 100% precision balanced
    • ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
    • Condition: New

    Interchange: 26300AG001 · 26300AG02A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    26300AG001, 26300AG02A

    Frequently Asked Questions

    Is this a 2010-2014 Subaru Outback H6 3.6L brake rotor?

    Yes. Bosch 48011480 is a front rotor listed for the 2010-2014 Subaru Outback H6 3.6L, and that car takes two.

    Does this front rotor work as a 2014-2018 Subaru Forester H4 2.0L brake rotor?

    Yes. It is listed for the 2014-2018 Subaru Forester H4 2.0L in the front position, two per car. This listing is one rotor.

    How thick is this Bosch brake rotor when new?

    Bosch 48011480 has a nominal thickness of 30 mm and a vented construction, with a 58 mm center bore.

    Does this Bosch QuietCast brake rotor come with the wheel hub?

    No. This front rotor is sold without a hub assembly, so it replaces the rotor only.

    Where is the discard specification on Bosch QuietCast rotors?

    The factory engraved edge code on the rotor includes its identification and the discard specification.
