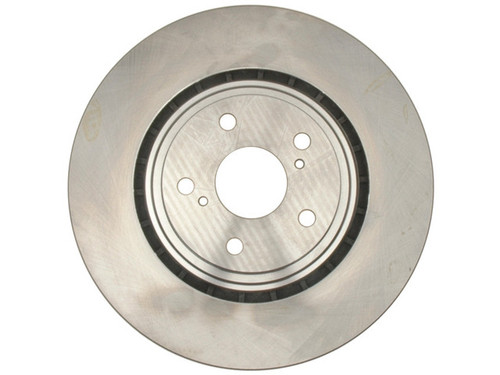

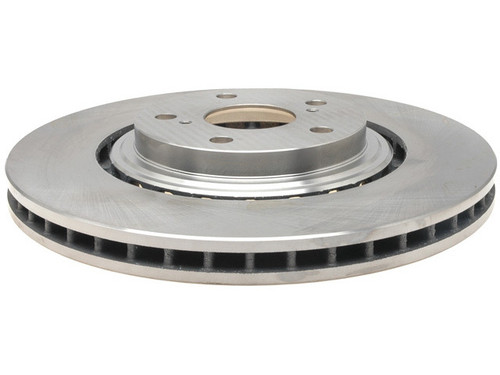

Front Brake Rotor for 2008-2019 Toyota Highlander & More - Raybestos 980636R

Designed for dependable everyday braking, the Raybestos R-Line Brake Rotor, part number 980636R, is a front vented rotor developed from OE samples to deliver OE fit, form and function. It fits many vehicles, among them the 2008-2019 Toyota Highlander, 2011-2020 Toyota Sienna and 2018-2021 Lexus NX300, all engines. See the Buyer's Guide tab for the full list.

• OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
• SAE standard: Meets the SAE standard for tensile strength, supporting the rotor's structural integrity.
• Low initial lateral runout and thickness variation: Lateral runout and thickness variation are kept small, which is designed to reduce pedal pulsation and brake noise and help extend pad life.
• Mill balanced edges: Mill balanced and 100 percent validated to help minimize thickness variation, for reduced vibration and smoother stopping.

This full-cast, cast iron front disc brake rotor is a conventional, non-directional design with a smooth braking surface and a rust-resistant coating. It measures 12.9 in (328.0 mm) in outside diameter and 49.4 mm in overall height. It has a 28.0 mm nominal thickness and a 24.9 mm discard thickness. It uses a 5-lug, 114.3 mm (4.5 in) bolt circle and a 62.0 mm center hole. The ABS tone ring and bearings are not included.

The listed applications use two rotors. This listing is for one, and replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
