Front Brake Rotor for 2015-2016 Ford F-350 Super Duty & More - Raybestos 680305R

$119.99

Vehicles this part fits

    Part number: 680305R
    UPC: 829352604380
    Condition: New
    Weight: 10.59 LBS
    Item Package Quantity: 1
    $119.99
    Adding to cart… The item has been added

    Have questions?

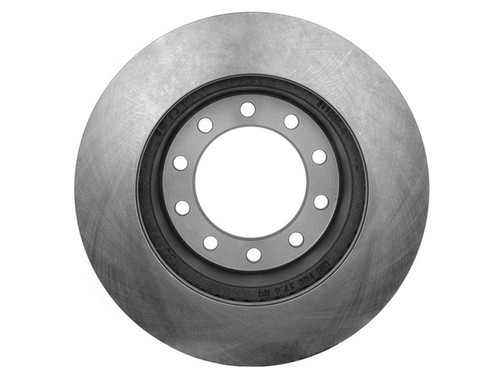

    Raybestos Brakes Disc Brake Rotor P/N:680305R
    Raybestos Brakes Disc Brake Rotor P/N:680305R
    $119.99
    $119.99

    Raybestos Brakes 680305R front brake rotor for the 2015-2016 Ford F-350 Super Duty and other vehicles gives the brake pads a surface to clamp against when you brake.

    • Raybestos R-Line series, engineered for everyday driving conditions
    • Made with G3000-qualified material
    • Meets the SAE standard for tensile strength
    • Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
    • Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

    Quick facts

    • Part: Raybestos Brakes 680305R brake rotor
    • Also called: disc brake rotor
    • Fits: 2015-2016 Ford F-350 Super Duty and other vehicles
    • Position: Front
    • Material: Cast Iron
    • Condition: New

    A pulsing brake pedal, vibration through the steering wheel when braking, brake noise or visible grooves in the rotor face can point to a worn rotor. Those signs alone do not prove the rotor is at fault, since a sticking caliper or worn pads can produce similar symptoms.

    Fits

    The vehicles it fits include the 2015-2016 Ford F-350 Super Duty, the 2005-2016 Ford F-450 Super Duty and the 2005-2016 Ford F-550 Super Duty, and these trucks take two. Developed from OE samples, it is built for OE fit, form and function. This listing is one front rotor, so the other side of the axle is normally done at the same time. If your truck is not named here, look for it in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: front
    • Quantity per vehicle: 2
    • Outside diameter: 369.05 mm (14.53 in)
    • Center hole diameter: 129.3 mm (5.09 in)
    • Bolt circle: 170 mm (6.693 in), 10 lug holes
    • Mounting bolt hole diameter: 16.15 mm (0.636 in)
    • Overall height: 98.4 mm (3.875 in)
    • Nominal thickness: 39 mm (1.535 in)
    • Discard thickness: 37.4 mm (1.472 in)

    Build and materials

    • Type: vented, conventional
    • Braking surface: non-directional
    • Material: cast iron
    • ABS tone ring: not included
    • Condition: new
    • Country of origin: China

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Raybestos Brakes 680305R rotor fit the 2005-2016 Ford F-450 Super Duty?

    Yes. The Raybestos Brakes 680305R front rotor fits the 2005-2016 Ford F-450 Super Duty. For other trucks, look up your vehicle in the "Vehicles it fits" section.

    What are the bolt circle and center hole sizes of this front brake rotor?

    The bolt circle is 170 mm (6.693 in) with 10 lug holes, and the center hole is 129.3 mm (5.09 in). The outside diameter is 369.05 mm (14.53 in).

    Is this disc brake rotor vented or solid?

    This rotor is vented, with a conventional (not drum-in-hat) design, a cast iron body and a non-directional braking surface.

    How thin can the 680305R rotor wear before it needs replacing?

    The Raybestos Brakes 680305R has a nominal thickness of 39 mm (1.535 in) and a discard thickness of 37.4 mm (1.472 in). A rotor measured at or below the discard figure is due for replacement.

    Does this front rotor come with an ABS tone ring?

    No. The ABS tone ring is not included with this front rotor.
