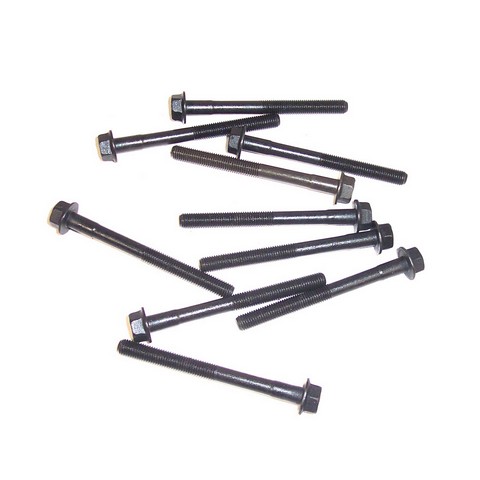

DNJ HBK903 cylinder head bolt set for the 1987-1990 Toyota Tercel 4-cylinder 1.5L clamps the cylinder head to the engine block. This engine cylinder head bolt set is designed to keep the head gasket sealed under extreme heat and mechanical stress.
- Uniform load distribution across the cylinder head surface to help maintain gasket sealing
- Heat-treated carbon or alloy steel for strength and fatigue resistance under high pressure and thermal cycling
- Hardened steel washers for accurate torque application and consistent clamping force
- Application-specific set designed to service the whole cylinder head installation
Quick facts
- Part: DNJ HBK903 cylinder head bolt set
- Also called: engine cylinder head bolt set
- Fits: 1987-1990 Toyota Tercel 4-cylinder 1.5L
- Material: heat-treated carbon or alloy steel
- Condition: New
Coolant or oil seeping at the head joint, overheating or a head gasket that keeps failing can mean the bolts have lost clamping force. A warped cylinder head, a failed head gasket or a cooling-system fault can produce these symptoms as well, so find the cause before buying this set.
Fits
It fits the 1987-1990 Toyota Tercel 4-cylinder 1.5L (L4-1.5L), and that engine takes one set.
Specifications
Fit and size
- Engine: L4-1.5L
- Quantity per vehicle: 1
- Head drive type: Star
Build and materials
- Material: heat-treated carbon or alloy steel
- Washers: hardened steel
- Reusable: No
- Condition: New
- Country of origin: Taiwan
In the box
One cylinder head bolt set: head bolts, or studs and nuts in some applications, with hardened steel washers.
Installation notes
- Torque-To-Yield (TTY) head bolts must never be reused, because reinstalling them can compromise clamping force and lead to engine failure.
Interchange: 016-1002
27074 · ES74027 · MM23192 · GS33319
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
016-1002, 27074, ES74027, MM23192, GS33319
Frequently Asked Questions
Is the DNJ HBK903 head bolt set right for a 1987-1990 Toyota Tercel 4-cylinder 1.5L?
Yes. DNJ HBK903 is listed for the 1987-1990 Toyota Tercel 4-cylinder 1.5L (L4-1.5L), and that engine takes one set.
What hardware comes with the DNJ HBK903 head bolt set?
DNJ HBK903 includes head bolts, or studs and nuts in some applications, along with hardened steel washers.
What are the bolts in this head bolt set made from?
They are heat-treated carbon or alloy steel, paired with hardened steel washers. The bolt heads use a star drive.
Are the head bolts in this set single-use?
Yes. Torque-To-Yield head bolts are single-use, because putting them back in can reduce clamping force and risk engine failure.
Is 016-1002 the same part as the DNJ HBK903?
Yes, 016-1002 is listed as an interchange number for the DNJ HBK903 set, alongside 27074, ES74027, MM23192 and GS33319.
