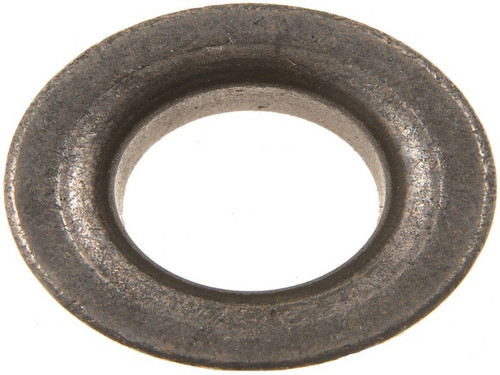

Dorman 690-034 clutch pilot bushing for the 1959-1961 Chevrolet Impala V8 5.7L, the 1959-1965 Impala 6-cylinder 3.8L, the 1959-1967 Impala V8 4.6L, the 1961-1965 Impala V8 6.7L, the 1962-1967 Impala V8 5.3L, the 1963 Impala V8 7.0L, the 1964-1967 Impala V8 5.4L, the 1965-1967 Impala 6-cylinder 4.1L or V8 6.5L, the 1966-1967 Impala V8 7.0L and other vehicles supports the end of the transmission input shaft at the back of the engine.
- Part of the Dorman Autograde product line
- Powder metal construction for a long service life
- Replaces an original pilot bushing that has worn out from fatigue
Quick facts
- Part: Dorman 690-034 clutch pilot bushing
- Fits: the 1959-1961 Chevrolet Impala V8 5.7L, the 1959-1965 Impala 6-cylinder 3.8L, the 1959-1967 Impala V8 4.6L, the 1961-1965 Impala V8 6.7L, the 1962-1967 Impala V8 5.3L, the 1963 Impala V8 7.0L, the 1964-1967 Impala V8 5.4L, the 1965-1967 Impala 6-cylinder 4.1L or V8 6.5L, the 1966-1967 Impala V8 7.0L and other vehicles
- Material: Powder metal
- Condition: New
A worn pilot bushing can show up as noise when the clutch pedal is pressed, or as rough shifting. Before you replace the bushing, rule out the release bearing, the clutch hydraulics and the clutch disc, since each of those can cause similar noise and shifting trouble.
Fits
The 1967 Chevrolet Camaro 6-cylinder 3.8L, 4.1L, V8 4.9L, 5.3L, 5.7L or 6.5L takes one of these bushings, and the part fits the vehicles named in the opening and many others. If your car is not named here, find it in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inside diameter: 0.593 in
- Outside diameter: 1.06 in
Build and materials
- Material: Powder metal
- Condition: New
- Country of origin: United States
In the box
One clutch pilot bushing.
Interchange: PB-656-P
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Dorman 690-034 fit the 1967 Chevrolet Camaro 6-cylinder 3.8L, 4.1L, V8 4.9L, 5.3L, 5.7L or 6.5L?
Yes. The Dorman 690-034 fits the 1967 Chevrolet Camaro with any of those engines. Other vehicles are named in the "Vehicles it fits" section.
What size is this Dorman clutch pilot bushing?
The Dorman 690-034 has an inside diameter of 0.593 in and an outside diameter of 1.06 in, so you can measure your old bushing against those numbers.
Does this Dorman pilot bushing come with any other parts?
No. The package holds one clutch pilot bushing, so anything else your clutch job needs is ordered separately.
How can I tell if a clutch pilot bushing is worn?
Possible signs include noise when the clutch pedal is pressed and rough shifting. A shop can inspect the bushing once the transmission is out.
What is this pilot bushing made of?
It is made of powder metal. The country of origin is the United States.
