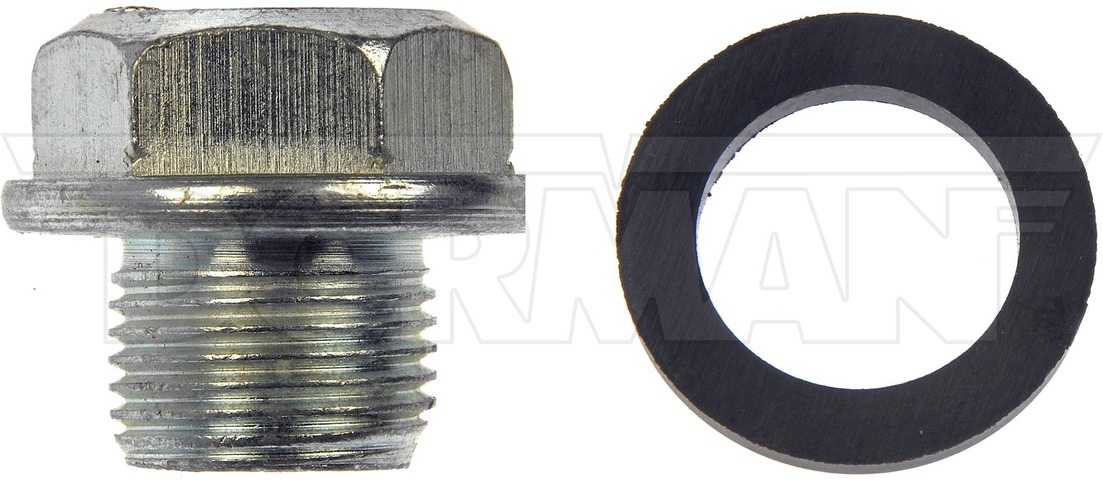

Dorman 090-039CD oil drain plug for the 1985-1986 Nissan Sentra 4-cylinder 1.7L and other vehicles closes the engine's oil drain opening so the oil stays in. It replaces a missing or damaged plug and helps keep the drain sealed.
- Dorman Autograde line, standard replacement grade
- Steel plug body with a bolt grade of 5.8
- Fine metric thread on a hex head with 6 socket points
- Made to strict specifications for reliable performance
Quick facts
- Part: Dorman 090-039CD oil drain plug
- Also called: engine oil drain plug
- Fits: 1985-1986 Nissan Sentra 4-cylinder 1.7L and other vehicles
- Material: Steel
- Condition: New
A worn drain plug can show up as oil seeping at the drain, a rounded or damaged head, or damaged threads. Before you replace the plug, rule out oil running down from another part of the engine, since a wet drain area does not always mean the plug is at fault.
Fits
This oil drain plug, a standard-replacement part with a fine metric thread, fits the 1985-1986 Nissan Sentra 4-cylinder 1.7L, the 1981-1983 Nissan Maxima 6-cylinder 2.8L and the 1981-1984 Maxima 6-cylinder 2.4L, along with many other Nissan models. Look for your own Nissan, with its year and engine, in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Thread size: M16.4-1.33 (metric, fine)
- Thread diameter: 16.4 mm
- Thread pitch: 1.33
- Length: 12 mm
- Head tool size: 21 mm
Build and materials
- Material: Steel
- Head drive: hex, 6 socket points
- Bolt grade: 5.8
- Magnetic: no
- Condition: New
- Country of origin: China
In the box
This listing holds one oil drain plug and one gasket, and the engine takes one plug.
Installation notes
- No special tool is required.
- The thread is standard size, not oversized.
- The plug is not a torque-to-yield type.
Interchange: 652356 · 1112869200 · 11128U8000
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
652356, 1112869200, 11128U8000
Frequently Asked Questions
Is the Dorman engine oil drain plug 090-039CD right for the 1985-1986 Nissan Sentra 4-cylinder 1.7L?
Yes. Dorman 090-039CD is listed for the 1985-1986 Nissan Sentra 4-cylinder 1.7L and other Nissan models. Look up your own car in the "Vehicles it fits" section.
Does the Dorman Autograde oil drain plug come with a gasket?
Yes. The listing holds one oil drain plug and one gasket. Nothing else is listed in the package.
What thread size does the Dorman drain plug use?
Dorman 090-039CD has a fine metric M16.4-1.33 thread, 16.4 mm across, with a 12 mm length and a 21 mm hex head.
What signs can mean a Dorman oil plug needs replacing?
Oil spotting where the car sits, a rounded or damaged head, or damaged threads can point to a worn plug. A shop can trace where a leak starts.
Is 11128U8000 a cross-reference number for this oil drain plug?
Yes. 11128U8000 is one of the other numbers this plug replaces, so you can use it to match the plug against an older part.
