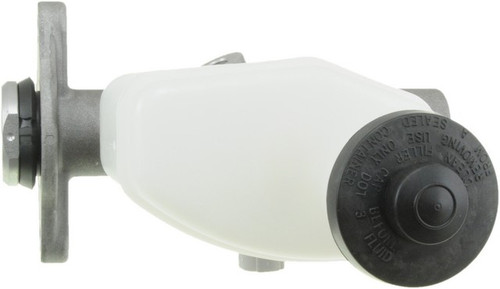

Dorman M390290 brake master cylinder for the 1994-1999 Toyota Celica turns pedal force into hydraulic pressure for the brakes. This new Dorman brake master cylinder has two outlets.
- Aluminum housing with a 0.938 in bore diameter
- Rubber components made of EPDM compound for resistance to glycol-based brake fluid
- Made entirely of new materials
- Made to meet rigorous SAE International standards
- Sold in the Dorman First Stop line
Quick facts
- Part: Dorman M390290 brake master cylinder
- Fits: 1994-1999 Toyota Celica
- Material: Aluminum
- Condition: New
A brake pedal that feels soft or sinks, or brake fluid showing around the cylinder, can mean the master cylinder is worn, though a leaking brake line or a worn caliper can be behind them as well, so find the cause before replacing it.
Fits
This master cylinder fits the 1994-1999 Toyota Celica.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.938 in
- Number of outlets: 2
- Rearward outlet size: M10 x 1.0
- Secondary outlet thread diameter: M10 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Reservoir: included
- Sensor: included
- Condition: New
- Country of origin: Taiwan
In the box
One brake master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new bolts rather than reusing the old ones. This listing is one master cylinder, and the 1994-1999 Toyota Celica takes one.
Interchange: 83-22218 · 100-1606 · M-56218 · 072-9030 · 13-2707 · 11-2707 · 130.44218 · 355-76073
18M746 · M900972 · 12991 · MC510110 · M52707 · NM52707 · 472012B090 · F131603 · F141681 · MC131603 · MC141681
This part cross-references / interchanges with the following part numbers:
18M746, 83-22218, M900972, 100-1606, M-56218, 072-9030, 12991, 13-2707, 11-2707, 130.44218, MC510110, 355-76073, M52707, NM52707, 472012B090, F131603, F141681, MC131603, MC141681
Frequently Asked Questions
Is this the right master cylinder for the 1994-1999 Toyota Celica?
Yes. Dorman M390290 fits the 1994-1999 Toyota Celica, which takes one.
Does this Dorman master cylinder come with the reservoir?
Yes. The reservoir and sensor are included, but mounting hardware is not.
What are the outlet thread sizes on the Dorman M390290?
Dorman M390290 has two outlets. The rearward and secondary outlets are M10 x 1.0, and the primary outlet thread pitch is 1 mm.
Can a sinking pedal mean this aluminum master cylinder is worn?
Yes, a pedal that sinks toward the floor or brake fluid leaking around the cylinder can be signs of wear. Have the brakes checked promptly rather than driving on.
What are the rubber components in this master cylinder made of?
All rubber components in this brake master cylinder are made of EPDM compound, which resists glycol-based brake fluid.
