Brake Master Cylinder for 1997-2001 Honda CR-V - Dorman M390403

$199.99

Vehicles this part fits

    Part number: M390403
    UPC: 082702396957
    Condition: New
    Weight: 1.73 LBS
    Item Package Quantity: 1
    $199.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - First Stop Brake Master Cylinder P/N:M390403
    Dorman - First Stop Brake Master Cylinder P/N:M390403
    $199.99
    $199.99

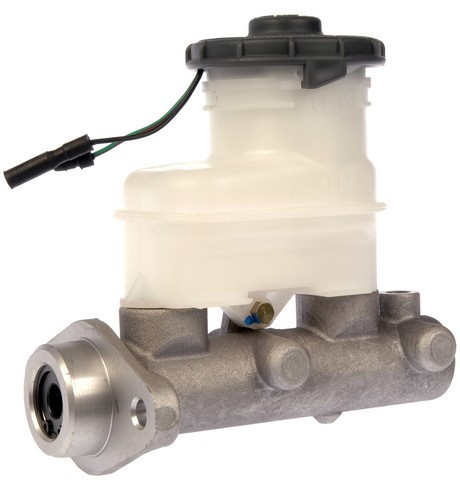

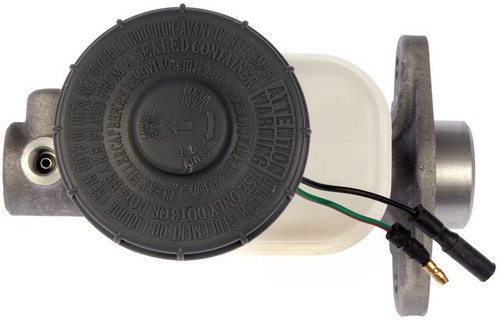

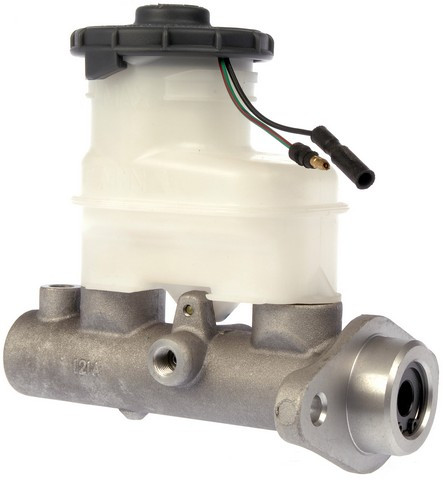

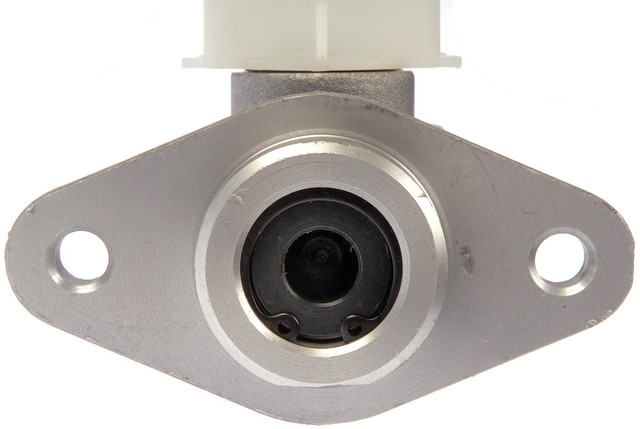

    Dorman M390403 brake master cylinder for the 1997-2001 Honda CR-V turns pedal force into hydraulic pressure for the brakes. The cylinder is engineered to follow the original's design, function and performance on these vehicles.

    • Dorman First Stop product line
    • Aluminum master cylinder
    • EPDM rubber components that resist glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet SAE International standards

    Quick facts

    • Part: Dorman M390403 brake master cylinder
    • Fits: 1997-2001 Honda CR-V
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, brake fluid around the cylinder or a brake warning light can mean a master cylinder is wearing out. These signs alone do not prove the master cylinder is at fault, since a leaking brake line can also leave the pedal soft. If the cylinder is the cause, this one replaces it.

    Fits

    This listing is a direct-fit replacement for the 1997-2001 Honda CR-V, which takes one master cylinder.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.938 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Master cylinder material: Aluminum
    • Rubber components: EPDM compound
    • Reservoir: included
    • Sensor: included
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One master cylinder with its reservoir and sensor. Mounting hardware is not included, and the old hardware may not be reusable, so plan on new pieces.

    Interchange: 83-08030 · 100-1334 · M-54030 · 072-9200 · 072-9291 · 13-2803 · 11-2803 · 130.40030 · 355-59019
    18M821 · M901056 · 13294 · MC500290 · 46100S10023 · 46100S47013 · M55052 · NM55052 · MC390402 · MC390403 · F133780 · F134445 · MC133780 · MC134445

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18M821, 83-08030, M901056, 100-1334, M-54030, 072-9200, 072-9291, 13294, 13-2803, 11-2803, 130.40030, MC500290, 355-59019, 46100S10023, 46100S47013, M55052, NM55052, MC390402, MC390403, F133780, F134445, MC133780, MC134445

    Frequently Asked Questions

    Is the Dorman M390403 master cylinder right for a 1997-2001 Honda CR-V?

    Yes. Dorman M390403 is listed for the 1997-2001 Honda CR-V.

    Does this master cylinder come with the reservoir and sensor?

    Yes. The Dorman M390403 includes the reservoir and the sensor. Mounting hardware is not included.

    What bore size and outlet threads does this master cylinder have?

    The bore diameter is 0.938 in. It has two outlets; the rearward outlet size and the secondary outlet thread diameter are both M10 x 1.0, and the primary outlet thread pitch is 1 mm.

    Which brake fluid are the rubber parts in this master cylinder made to resist?

    All rubber components are made of EPDM compound, which resists glycol-based brake fluid.

    Does the Dorman M390403 replace master cylinder number 46100S10023?

    Yes. 46100S10023 is one of the numbers Dorman M390403 replaces, along with 46100S47013 and 18M821.
