Brake Master Cylinder for 1986-1988 Toyota Pickup - Dorman M39657

$130.99

Vehicles this part fits

    Part number: M39657
    UPC: 082702399798
    Condition: New
    Weight: 3.10 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $130.99
    Adding to cart… The item has been added

    Have questions?

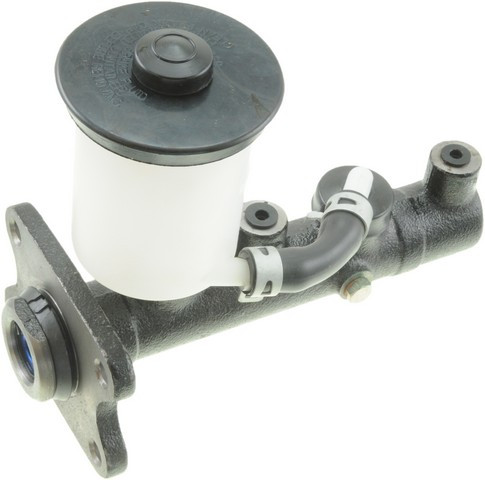

    Dorman - First Stop Brake Master Cylinder P/N:M39657
    Dorman - First Stop Brake Master Cylinder P/N:M39657
    $130.99
    $130.99

    Dorman M39657 brake master cylinder for the 1986-1988 Toyota Pickup turns pedal force into hydraulic pressure for the brakes. This is a new part, made entirely of new materials.

    • Part of the Dorman First Stop line
    • Cast iron cylinder housing
    • Rubber components made of EPDM compound for resistance to glycol-based brake fluid
    • Made to meet SAE International standards
    • Reservoir included with the cylinder

    Quick facts

    • Part: Dorman M39657 brake master cylinder
    • Fits: 1986-1988 Toyota Pickup
    • Material: Cast iron
    • Condition: New

    A brake pedal that feels soft or slowly sinks, fluid leaking at the cylinder, or a brake warning light can mean the master cylinder is worn. A leaking brake hose or a faulty caliper can be behind those signs too, so find the cause before you replace it.

    Fits

    This master cylinder is a direct-fit replacement for the 1986-1988 Toyota Pickup, which takes one. The listing is one cylinder.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.875 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Cast iron
    • Rubber components: EPDM compound
    • Reservoir: included
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One brake master cylinder with its reservoir. Mounting hardware and a sensor are not included, and the old fasteners may not be reusable, so plan on new ones.

    Interchange: 83-22405 · 100-1620 · M-56405 · 072-8500 · 13-2242 · 11-2242 · 130.44405 · 355-76084
    18M370 · M900576 · 12283 · MC251240 · NM52242 · MC39657 · 4720135540 · 4720135541 · F112413 · MC112413

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18M370, 83-22405, M900576, 100-1620, M-56405, 072-8500, 12283, 13-2242, 11-2242, 130.44405, MC251240, 355-76084, NM52242, MC39657, 4720135540, 4720135541, F112413, MC112413

    Frequently Asked Questions

    Is Dorman M39657 the right master cylinder for the 1986-1988 Toyota Pickup?

    Yes. Dorman M39657 is listed for the 1986-1988 Toyota Pickup, and the truck takes one master cylinder.

    Does this Dorman master cylinder come with the reservoir?

    Yes. Dorman M39657 comes with its reservoir. Mounting hardware and a sensor are not included.

    What is the housing of this master cylinder made of?

    The housing is cast iron. All of the rubber components are made of an EPDM compound that resists glycol-based brake fluid.

    Could a sinking brake pedal mean the master cylinder is worn?

    It can, when the master cylinder itself is worn or leaking. Brakes are a safety system, so have a shop test the system promptly instead of driving on it.

    What bore size and outlet threads does this master cylinder have?

    It has a 0.875 in bore and two outlets. The rearward outlet and the secondary outlet thread are both M10 x 1.0, with a 1 mm primary outlet thread pitch.
