Brake Master Cylinder for 2002-2005 Kia Sedona - Dorman M630051

$155.99

Vehicles this part fits

    Part number: M630051
    UPC: 082702460306
    Condition: New
    Weight: 2.03 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $155.99

    Out of stock

    Have questions?

    Dorman - First Stop Brake Master Cylinder P/N:M630051
    Dorman - First Stop Brake Master Cylinder P/N:M630051
    $155.99
    $155.99

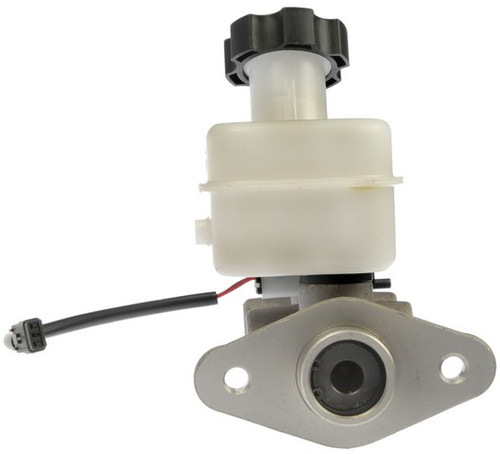

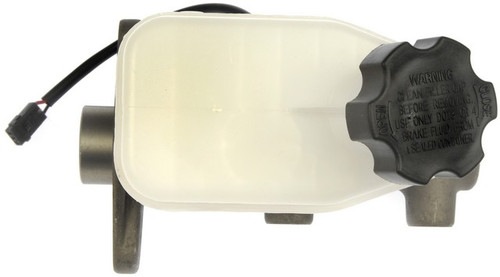

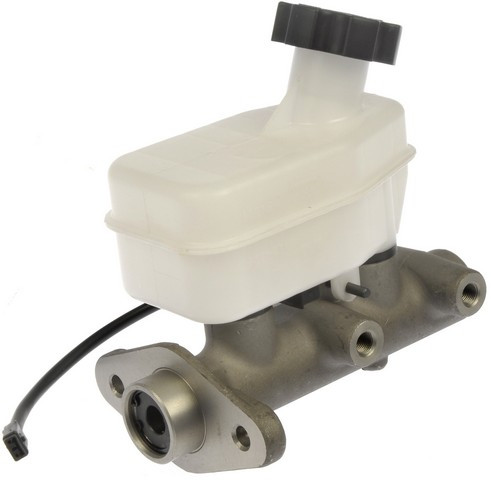

    Dorman M630051 brake master cylinder for the 2002-2005 Kia Sedona turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder has two outlets and is made entirely of new materials.

    • Part of the Dorman First Stop line
    • Aluminum cylinder housing with a 1 in bore diameter
    • EPDM rubber components for resistance to glycol-based brake fluid
    • Made to meet SAE International standards

    Quick facts

    • Part: Dorman M630051 brake master cylinder
    • Fits: 2002-2005 Kia Sedona
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, fluid around the cylinder or a brake warning light can mean the master cylinder is worn, though a leaking brake hose or a worn caliper can produce similar signs, so find the cause before you replace anything.

    Fits

    This brake master cylinder is a direct-fit replacement for the 2002-2005 Kia Sedona. A 2002-2005 Kia Sedona takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 1 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Condition: New
    • Country of origin: China

    In the box

    One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware rather than reusing the old.

    Interchange: 100-1983 · 13-3230 · 11-3230 · 130.50012 · 355-21010
    1K52Y43400 · 1K52Y43400A · M55207 · NM55207 · MC390755 · F143001 · MC143001

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-1983, 13-3230, 11-3230, 130.50012, 355-21010, 1K52Y43400, 1K52Y43400A, M55207, NM55207, MC390755, F143001, MC143001

    Frequently Asked Questions

    Is the Dorman M630051 a brake master cylinder for the 2002-2005 Kia Sedona?

    Yes. Dorman M630051 is a direct-fit replacement for the 2002-2005 Kia Sedona, which takes one.

    Does this Dorman master cylinder come with the reservoir and sensor?

    Yes. Dorman M630051 ships as one master cylinder with the reservoir and sensor included. Mounting hardware is not included.

    Is the housing on this brake master cylinder aluminum?

    Yes. The cylinder is aluminum with a 1 in bore, and its rubber components are an EPDM compound made for resistance to glycol-based brake fluid.

    Can a soft brake pedal mean the master cylinder is worn?

    It can. A pedal that feels soft or sinks, or fluid seen at the cylinder, can point to wear. A shop can test the hydraulic system to confirm.

    What size are the outlets on this brake master cylinder?

    The cylinder has two outlets. The rearward outlet and the secondary outlet thread are both M10 x 1.0, and the primary outlet thread pitch is 1 mm.
