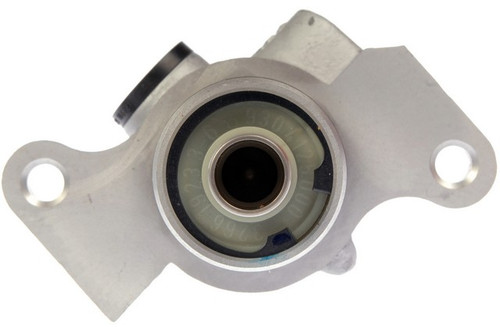

Brake Master Cylinder for 2001-2006 BMW X5 - Dorman M630077

$376.99

Vehicles this part fits

    Part number: M630077
    UPC: 082702460825
    Condition: New
    Weight: 1.69 LBS
    Item Package Quantity: 1
    $376.99

    Out of stock

    Have questions?

    Dorman - First Stop Brake Master Cylinder P/N:M630077
    Dorman - First Stop Brake Master Cylinder P/N:M630077
    $376.99
    $376.99

    Dorman M630077 brake master cylinder for the 2001-2006 BMW X5 turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder sends fluid out through two outlets to the brake lines.

    • Aluminum cylinder housing
    • All rubber components are EPDM compound, resistant to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards

    Quick facts

    • Part: Dorman M630077 brake master cylinder
    • Fits: 2001-2006 BMW X5
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, fluid around the cylinder or a brake warning light can be signs of a worn master cylinder. Worn pads, a leaking caliper or brake hose, or air in the lines can be behind the same signs, so find the actual cause before you buy.

    Fits

    Dorman M630077 is a direct-fit replacement for the 2001-2006 BMW X5.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 25 mm and 22 mm
    • Number of outlets: 2
    • Rearward outlet size: M12 x 1.0
    • Secondary outlet thread diameter: M12 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One brake master cylinder; the 2001-2006 BMW X5 takes one. The reservoir, mounting hardware and sensor are not included, so plan on new mounting hardware rather than reusing the old.

    Interchange: 100-3941 · 13-3167 · 11-3167 · 130.34022 · 355-31022
    M901209 · 34316757743 · 13588 · NM55474 · MC390768 · F141813 · MC141813

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    M901209, 100-3941, 34316757743, 13588, 13-3167, 11-3167, 130.34022, 355-31022, NM55474, MC390768, F141813, MC141813

    Frequently Asked Questions

    Is this the right master cylinder for the 2001-2006 BMW X5?

    Yes. Dorman M630077 is a direct-fit replacement for the 2001-2006 BMW X5, which takes one.

    Does this Dorman master cylinder come with a reservoir?

    No. Dorman M630077 is the master cylinder alone; the reservoir, mounting hardware and sensor are not included.

    What are the outlet thread sizes on this brake master cylinder?

    It has two outlets. The rearward outlet and the secondary outlet threads are both M12 x 1.0, and the primary outlet thread pitch is 1 mm.

    Is the housing on this brake master cylinder aluminum?

    Yes. The master cylinder material is aluminum, and all rubber components are EPDM compound for resistance to glycol-based brake fluid.

    Does Dorman M630077 replace part number 34316757743?

    Yes. 34316757743 is on this page's Interchange line as a number this Dorman M630077 master cylinder replaces.
