Brake Master Cylinder for 2001-2002 Toyota Sienna - Dorman M630125

$147.99

Vehicles this part fits

    Part number: M630125
    UPC: 082702461457
    Condition: New
    Weight: 1.74 LBS
    Item Package Quantity: 1
    $147.99
    Adding to cart… The item has been added

    Have questions?

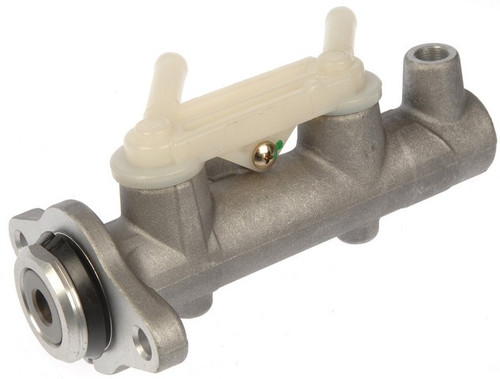

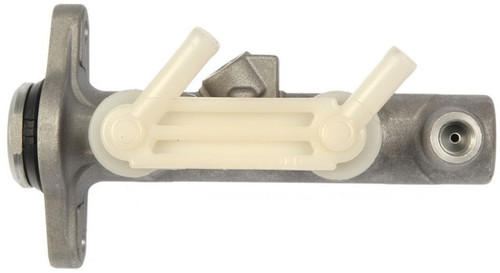

    Dorman - First Stop Brake Master Cylinder P/N:M630125
    Dorman - First Stop Brake Master Cylinder P/N:M630125
    $147.99
    $147.99

    Dorman M630125 brake master cylinder for the 2001-2002 Toyota Sienna turns pedal force into hydraulic pressure for the brakes. Precision engineering matches the design, function and performance of the original master cylinder.

    • Part of the Dorman First Stop line
    • Aluminum master cylinder body with a 1 in bore diameter
    • All rubber components use a high-quality EPDM compound for resistance to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards
    • Two outlets, with an M12 x 1.0 rearward outlet

    Quick facts

    • Part: Dorman M630125 brake master cylinder
    • Fits: 2001-2002 Toyota Sienna
    • Material: Aluminum
    • Condition: New

    A brake pedal that feels soft or sinks, brake fluid around the cylinder body or a brake warning light can mean the master cylinder is wearing out. Air in the lines or a leaking caliper can also give a soft pedal, so with the engine off, look for fluid at the cylinder and check the reservoir level before replacing it.

    Fits

    This master cylinder is a direct-fit replacement for the 2001-2002 Toyota Sienna, which takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 1 in
    • Number of outlets: 2
    • Rearward outlet size: M12 x 1.0
    • Secondary outlet thread diameter: M12 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Standards: SAE International
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One master cylinder. The reservoir, mounting hardware and sensor are not included, and the old fasteners may not be reusable, so plan on new ones.

    Interchange: 100-1689 · 13-2979 · 11-2735 · 130.44815 · 355-76160
    13844 · M55301 · NM55301 · MC390914 · 4720108030 · F141625 · MC141625

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-1689, 13844, 13-2979, 11-2735, 130.44815, 355-76160, M55301, NM55301, MC390914, 4720108030, F141625, MC141625

    Frequently Asked Questions

    Is the Dorman M630125 the right brake master cylinder for a 2001-2002 Toyota Sienna?

    Yes. Dorman M630125 is a direct-fit brake master cylinder for the 2001-2002 Toyota Sienna, and that model takes one.

    Does the Dorman M630125 come with the reservoir and mounting hardware?

    No. Dorman M630125 is one master cylinder only. The reservoir, mounting hardware and sensor are not included.

    What are the bore size and outlet thread on this brake master cylinder?

    The bore diameter is 1 in. The rearward outlet and the secondary outlet thread are both M12 x 1.0, and the primary outlet thread pitch is 1 mm.

    Are the rubber parts in this master cylinder made for glycol-based brake fluid?

    Yes. All the rubber components use a high-quality EPDM compound for resistance to glycol-based brake fluid.

    Is 13844 an interchange number for this brake master cylinder?

    Yes. 13844 is listed as an interchange number for Dorman M630125, and the Interchange line on this page gives the other numbers it replaces.
