Brake Master Cylinder for 2001-2002 Toyota RAV4 - Dorman M630135

$143.99

Vehicles this part fits

    Part number: M630135
    UPC: 082702461600
    Condition: New
    Weight: 3.96 LBS
    Item Package Quantity: 1
    $143.99

    Out of stock

    Have questions?

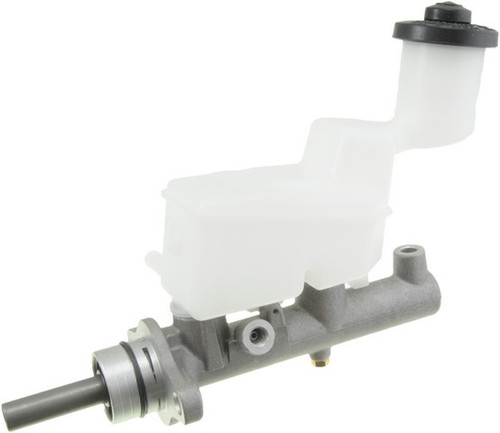

    Dorman - First Stop Brake Master Cylinder P/N:M630135
    Dorman - First Stop Brake Master Cylinder P/N:M630135
    $143.99
    $143.99

    Dorman M630135 brake master cylinder for the 2001-2002 Toyota RAV4 turns pedal force into hydraulic pressure for the brakes.

    • Part of the Dorman First Stop line
    • Master cylinder made of aluminum
    • All rubber components are made of EPDM compound, which resists glycol-based brake fluid
    • Made entirely of new materials
    • Built to meet rigorous SAE International standards

    Quick facts

    • Part: Dorman M630135 brake master cylinder
    • Fits: 2001-2002 Toyota RAV4
    • Material: Aluminum
    • Condition: New

    A soft or sinking pedal, fluid around the master cylinder or a brake warning light can mean this part is failing. With the engine off, look at the fluid level in the reservoir first: low fluid can come from worn pads or a leak elsewhere, so find that cause before replacing the master cylinder.

    Fits

    This master cylinder is a direct-fit replacement for the 2001-2002 Toyota RAV4, which takes one. The listing is a single unit.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.875 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Standards: SAE International
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware rather than reusing the old.

    Interchange: 100-1706 · 072-9527 · 13-4020 · 11-2991 · 130.44912 · 355-76176
    13850 · NM55245A · 4720142190 · F141557 · F142660 · MC141557 · MC142660

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-1706, 072-9527, 13850, 13-4020, 11-2991, 130.44912, 355-76176, NM55245A, 4720142190, F141557, F142660, MC141557, MC142660

    Frequently Asked Questions

    Is Dorman M630135 the right brake master cylinder for a 2001-2002 Toyota RAV4?

    Yes. Dorman M630135 is a direct-fit replacement for the 2001-2002 Toyota RAV4, and the vehicle takes one. Mounting hardware is not included.

    Does the Dorman M630135 come with the reservoir and sensor?

    Yes. Dorman M630135 comes with its reservoir and sensor. Mounting hardware is not included, so have new hardware ready for installation.

    What size are the outlet threads on this master cylinder?

    Both the rearward and secondary outlets are M10 x 1.0, and the primary outlet thread pitch is 1 mm. The bore diameter is 0.875 in.

    Can a sinking brake pedal mean the master cylinder is bad?

    A sinking pedal can be one sign of a failing master cylinder, along with fluid around it or a brake warning light. Have the brakes checked promptly, since brake problems should not wait.

    Does Dorman M630135 meet SAE standards?

    Yes. Dorman M630135 is made to meet rigorous SAE International standards, and it is built entirely of new materials.
