Brake Master Cylinder for 2005-2006 Chevrolet Equinox & More - Dorman M630327

$119.99

Vehicles this part fits

    Part number: M630327
    UPC: 885484004078
    Condition: New
    Weight: 2.92 LBS
    Item Package Quantity: 1
    $119.99
    Adding to cart… The item has been added

    Have questions?

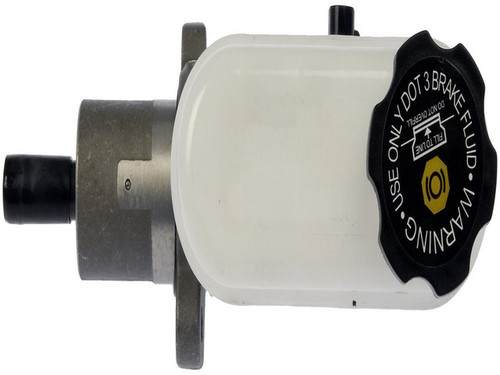

    Dorman - First Stop Brake Master Cylinder P/N:M630327
    Dorman - First Stop Brake Master Cylinder P/N:M630327
    $119.99
    $119.99

    Dorman M630327 brake master cylinder for the 2005-2006 Chevrolet Equinox and other vehicles turns pedal force into hydraulic pressure for the brakes.

    • Dorman First Stop line brake master cylinder
    • Aluminum master cylinder with a 1 in bore diameter
    • All rubber components made of EPDM compound that resists glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards
    • Reservoir and sensor included

    Quick facts

    • Part: Dorman M630327 brake master cylinder
    • Fits: 2005-2006 Chevrolet Equinox and other vehicles
    • Material: Aluminum
    • Condition: New

    A brake pedal that sinks or feels soft, or fluid seeping around the cylinder, can mean this master cylinder is worn, though a leaking brake line or a worn caliper can also be behind those signs.

    Fits

    This brake master cylinder fits the 2005-2006 Chevrolet Equinox, the 2003-2007 Saturn Vue and the 2006 Pontiac Torrent, at one cylinder per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 1 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M12 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Reservoir: included
    • Sensor: included
    • Condition: New
    • Country of origin: China

    In the box

    One brake master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new fasteners, since the old ones may not be reusable.

    Interchange: 174-1113 · 100-2343 · 13-3102 · 10-3102 · 130.62130 · 355-47090
    14100 · 15892508 · 22707377 · M4083 · NM4083 · MC390739 · F142904 · MC142904

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    174-1113, 100-2343, 14100, 13-3102, 10-3102, 130.62130, 355-47090, 15892508, 22707377, M4083, NM4083, MC390739, F142904, MC142904

    Frequently Asked Questions

    Is this the master cylinder for the 2003-2007 Saturn Vue?

    Yes. Dorman M630327 fits the 2003-2007 Saturn Vue, which takes one.

    Does the Dorman M630327 come with the reservoir and sensor?

    Yes. Dorman M630327 comes with its reservoir and sensor. Mounting hardware is not included.

    What are the outlet thread sizes on this master cylinder?

    The rearward outlet is M10 x 1.0 and the secondary outlet thread diameter is M12 x 1.0. The primary outlet thread pitch is 1 mm.

    Can this brake master cylinder be used with glycol-based brake fluid?

    Yes. All rubber components are made of EPDM compound for resistance to glycol-based brake fluid, and the cylinder body is aluminum.

    Is 15892508 an interchange number for Dorman M630327?

    Yes. 15892508 is among the numbers this part replaces, along with 22707377 and 174-1113. The full list is on the Interchange line.
