Brake Master Cylinder for 2005-2010 Scion tC - Dorman M630476

$140.99

Vehicles this part fits

    Part number: M630476
    UPC: 885484048263
    Condition: New
    Weight: 1.60 LBS
    Item Package Quantity: 1
    $140.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - First Stop Brake Master Cylinder P/N:M630476
    Dorman - First Stop Brake Master Cylinder P/N:M630476
    $140.99
    $140.99

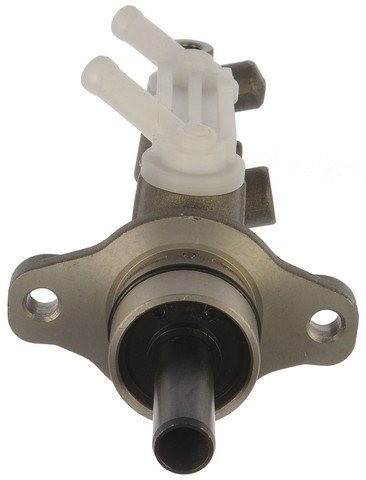

    Dorman M630476 brake master cylinder for the 2005-2010 Scion tC turns pedal force into hydraulic pressure for the brakes. When the original cylinder wears or leaks, this 2005-2010 Scion tC master cylinder replaces it.

    • Dorman First Stop line brake master cylinder
    • Aluminum cylinder housing with a 0.813 in bore diameter
    • Rubber components made of EPDM compound for resistance to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet SAE International standards
    • Two outlets threaded M10 x 1.0

    Quick facts

    • Part: Dorman M630476 brake master cylinder
    • Fits: 2005-2010 Scion tC
    • Material: Aluminum
    • Condition: New

    Fluid leaking near the cylinder or a brake pedal that feels soft can be signs of a worn master cylinder. Worn calipers, a leaking brake line or air in the system can be behind these signs too, so find the cause before buying.

    Fits

    It fits the 2005-2010 Scion tC, and that car takes one master cylinder.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.813 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Condition: New
    • Country of origin: China

    In the box

    One master cylinder. The reservoir, sensor and mounting hardware are not included, so plan on new mounting hardware, since the old pieces may not be reusable.

    Interchange: 100-1631 · 13-3339 · 11-3339 · 130.44505 · 355-91001
    NM4238 · MC391298 · 4720121080 · 4722021030 · 4722021040 · F142633 · F142720 · MC142633 · MC142720

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-1631, 13-3339, 11-3339, 130.44505, 355-91001, NM4238, MC391298, 4720121080, 4722021030, 4722021040, F142633, F142720, MC142633, MC142720

    Frequently Asked Questions

    Can I use this as a 2006 Scion tC master cylinder replacement?

    Yes. Dorman M630476 fits the 2005-2010 Scion tC, so the 2006 model year is covered.

    Does the Dorman M630476 come with a reservoir or sensor?

    No. Dorman M630476 is the master cylinder only. The reservoir, sensor and mounting hardware are not included.

    What are the outlet thread sizes on this brake master cylinder?

    The rearward and secondary outlets are both M10 x 1.0, and the primary outlet thread pitch is 1 mm. The bore diameter is 0.813 in.

    Is this master cylinder aluminum, and what are its rubber parts made of?

    Yes, the cylinder is aluminum. All rubber components are EPDM compound, which resists glycol-based brake fluid.

    My brake pedal slowly sinks under steady pressure; could the master cylinder be involved?

    It can be. A sinking pedal or a brake warning light can come from the master cylinder, so have it checked by a shop promptly.
