Brake Master Cylinder for 2003-2008 Toyota Corolla & More - Dorman M630514

$133.99

Vehicles this part fits

    Part number: M630514
    UPC: 885484083592
    Condition: New
    Weight: 3.96 LBS
    Item Package Quantity: 1
    $133.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - First Stop Brake Master Cylinder P/N:M630514
    Dorman - First Stop Brake Master Cylinder P/N:M630514
    $133.99
    $133.99

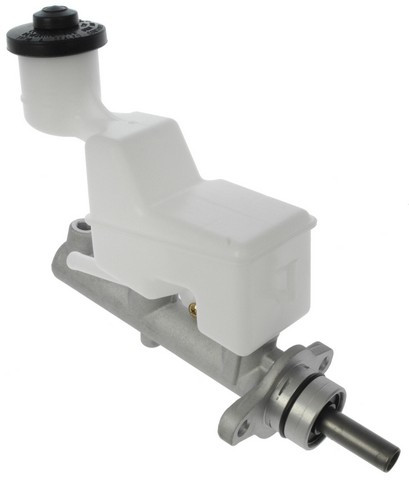

    Dorman M630514 brake master cylinder for the 2003-2008 Toyota Corolla and other vehicles turns pedal force into hydraulic pressure for the brakes.

    • Aluminum cylinder housing with a 20.69 mm bore
    • Rubber components made of EPDM compound for resistance to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet SAE International standards
    • Reservoir and sensor included
    • Sold in the Dorman First Stop line

    Quick facts

    • Part: Dorman M630514 brake master cylinder
    • Fits: 2003-2008 Toyota Corolla and other vehicles
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, fluid leaking around the cylinder or a brake warning light can mean this master cylinder is worn. A leaking brake line or a worn caliper seal can also be behind those signs, so work out which one it is before you replace the cylinder.

    Fits

    This is a master cylinder for the 2003-2008 Toyota Corolla, and it also fits the 2003-2008 Toyota Matrix and the 2003-2008 Pontiac Vibe. The 2003-2008 Pontiac Vibe takes one master cylinder.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Number of outlets: 2
    • Bore diameter: 20.69 mm
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: aluminum
    • Rubber components: EPDM compound
    • Reservoir: included
    • Sensor: included
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware, because the old pieces may not be reusable.

    Interchange: 100-1586 · 13-3091M · 11-3091 · 130.44120
    13849 · 88971205 · 4720102290 · F141556 · MC141556

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-1586, 13849, 13-3091M, 11-3091, 130.44120, 88971205, 4720102290, F141556, MC141556

    Frequently Asked Questions

    Is this Dorman brake master cylinder the right one for the 2003-2008 Pontiac Vibe?

    Yes. Dorman M630514 fits the 2003-2008 Pontiac Vibe and the 2003-2008 Toyota Corolla. The 2003-2008 Pontiac Vibe takes one.

    Does this Dorman master cylinder come with the reservoir and sensor?

    Yes. Dorman M630514 comes with its reservoir and sensor included. Mounting hardware is not included.

    What size are the outlet threads on this master cylinder?

    The rearward and secondary outlets are M10 x 1.0, and the primary outlet thread pitch is 1 mm. The cylinder has two outlets and a 20.69 mm bore.

    Why does my brake pedal sink slowly, and could the master cylinder be the reason?

    A pedal that sinks or feels soft, fluid at the cylinder body or a brake warning light can mean the master cylinder is worn. Have it tested by a shop promptly, since this is a brake part.

    Which brake fluid are the rubber parts in Dorman M630514 made for?

    All rubber components in Dorman M630514 are EPDM compound, which resists glycol-based brake fluid. The cylinder housing is aluminum.
