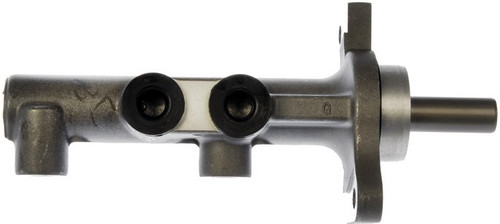

Send hydraulic pressure to the brake lines with the Dorman First Stop Brake Master Cylinder M630522. It is a new, direct-fit replacement for the 2007-2014 Ford Edge and 2007-2014 Lincoln MKX with all engines. It is engineered to mirror the design, function and performance of the original master cylinder on the listed applications, and it is made from new, high-quality materials for a safe, durable repair.
Specifications: The bore diameter is 0.875 in. It has 2 outlets. The rearward and secondary outlets are M14 x 1.5, and the primary outlet uses a 1.5 mm thread pitch. The package contains the master cylinder only. The reservoir, sensor and mounting hardware are not included, so transfer or replace them as directed by the service procedure. Country of origin: China.
The master cylinder turns brake pedal force into hydraulic pressure that feeds the brake lines. If a leaking or internally worn master cylinder is the cause of a soft or sinking pedal, this unit replaces it. Diagnose the brake system first, and follow the vehicle service information for installation and bleeding.
Interchange: 100-2200 · 13-3310 · 10-3310 · 130.61132 · 355-54094 · BRMC-117
1002200 · 133310 · 103310 · 13061132 · 35554094 · BRMC117 · 7T4Z2140A · BT4Z2140A · CT4Z2140A · NM4163 · MC391162 · F142437 · MC142437
This part cross-references / interchanges with the following part numbers:
Is this the right 2013 Ford Edge master cylinder?
Yes. It is cataloged as a direct-fit replacement for the 2007-2014 Ford Edge with all engines, which includes the 2013 model year. One is used per vehicle.
Does it also fit the 2007-2014 Lincoln MKX?
Yes. It is listed for the 2007-2014 Lincoln MKX with all engines, one per vehicle.
Is a reservoir included in the box?
No. The package contains the master cylinder only, with no reservoir, sensor or mounting hardware. Transfer or replace those parts as directed by the vehicle service procedure.
What are the bore and outlet specifications?
It has a 0.875-inch bore and two outlets. The rearward and secondary outlets are M14 x 1.5, and the primary outlet uses a 1.5 mm thread pitch.
What are signs a master cylinder may need replacing?
A soft or sinking brake pedal, fluid leaking around the master cylinder, or a low-fluid warning may indicate a failing unit. Other brake parts can cause these signs too, so diagnose before replacing.
