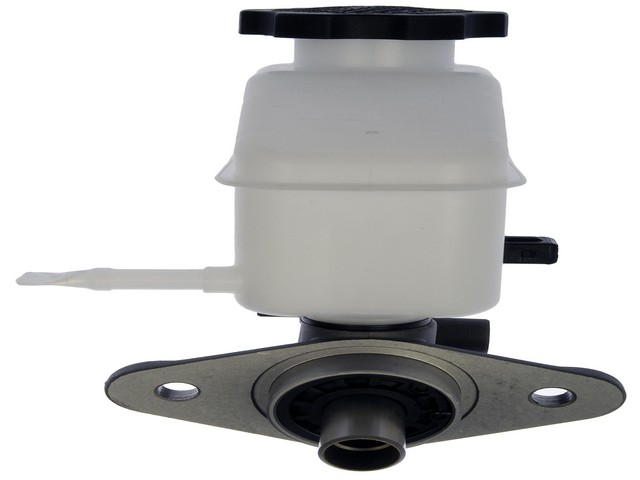

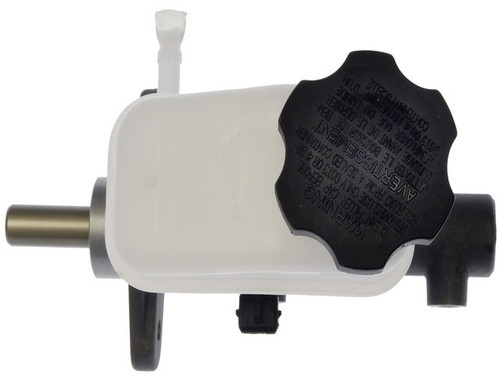

Turn pedal effort into hydraulic braking pressure with the Dorman First Stop 2006-2010 Hyundai Elantra master cylinder, part number M630533. It is a direct-fit replacement for the 2006-2010 Hyundai Elantra with all engines. It is precision-engineered to match the original master cylinder's design, function and performance on those models, and it is built from new, high-quality materials for a safe, durable replacement.
- Precise replacement: The cylinder housing is constructed to match the casting material of the original part, intended to deliver similar performance.
- Durable design: Every rubber component uses a high-quality EPDM compound for resistance to glycol-based brake fluid.
- 100% new: Made entirely of new materials for quality and safety.
- Strict specifications: Made to meet rigorous SAE International standards.
Specifications: Aluminum master cylinder with a 0.813 in. bore diameter and 2 outlets. Rearward outlet size is M10 x 1.0, secondary outlet thread diameter is M10 x 1.0, and primary outlet thread pitch is 1 mm. The reservoir and a sensor are included; mounting hardware is not included. Country of origin: China.
The master cylinder converts brake-pedal force into hydraulic pressure that travels through the brake lines to each wheel. Signs this part may need replacing include a soft or sinking pedal and brake fluid leaking at the master cylinder. If a worn master cylinder is the cause, this unit replaces it. Bleed the brake system as directed by the vehicle service information after installation.
Interchange: 100-2054 · 13-3318 · 11-3318 · 130.51043 · 355-03040
585102H300 · NM55488 · MC391278 · F142424 · MC142424 · 1002054 · 133318 · 113318 · 13051043 · 35503040
This part cross-references / interchanges with the following part numbers:
100-2054, 13-3318, 11-3318, 130.51043, 355-03040, 585102H300, NM55488, MC391278, F142424, MC142424
