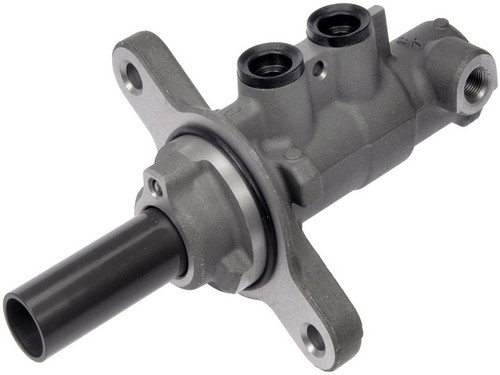

Dorman - First Stop Brake Master Cylinder P/N:M390016

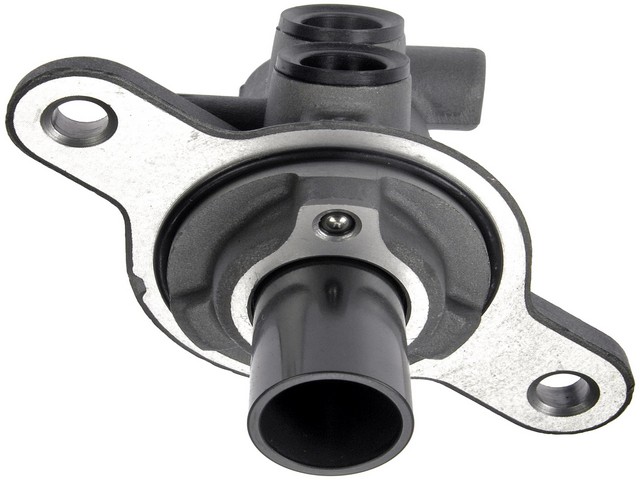

Dorman M630580 brake master cylinder for the 2007-2011 Toyota Camry and other vehicles turns pedal force into hydraulic pressure for the brakes.
A soft or sinking brake pedal, fluid around the cylinder or a brake warning light can mean the master cylinder is wearing out. Before you replace it, rule out a leak at a brake line, caliper or wheel cylinder, and low fluid from worn pads.
This Dorman master cylinder fits the 2007-2011 Toyota Camry and the 2007-2013 Lexus ES350, and each takes one.
Fit and size
Build and materials
One brake master cylinder. The reservoir, sensor and mounting hardware are not included, so plan on new mounting hardware, since the old pieces may not be reusable.
Interchange: 100-1565 · 13-3308 · 11-3308 · 11-3538 · 11-3541 · 130.44048 · 130.44049 · 130.44054 · 355-75021 · 355-76028 · 355-76029
NM4235 · NM4236 · MC390971 · 4720133450 · 4720133460 · 4720133470 · F143613 · F143915 · MC143613 · MC143915 · MWMMC900021
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this a master cylinder for the 2007-2011 Toyota Camry?
Yes. Dorman M630580 fits the 2007-2011 Toyota Camry and the 2007-2013 Lexus ES350, one cylinder per vehicle.
Does Dorman M630580 come with a reservoir?
No. Dorman M630580 is the cylinder only; the reservoir, sensor and mounting hardware are not included.
What bore size does this master cylinder have?
The bore diameter is 0.875 in. It has two outlets with M10 x 1.0 thread, and the primary outlet has a 1 mm thread pitch.
What are the rubber parts in the Dorman brake master cylinder made of?
All rubber components in this master cylinder are EPDM compound, which resists glycol-based brake fluid. The housing is aluminum.
How can I tell if a brake master cylinder is leaking?
With the engine off and cool, look for wet fluid at the rear of the cylinder and on the brake booster, or a fluid level that keeps dropping. A shop can pressure-test it.
