Brake Master Cylinder for 2009-2017 Chevrolet Express 2500 & More - Dorman M630595

$158.99

Vehicles this part fits

    Part number: M630595
    UPC: 885484085138
    Condition: New
    Weight: 4.07 LBS
    Item Package Quantity: 1
    $158.99
    Adding to cart… The item has been added

    Have questions?

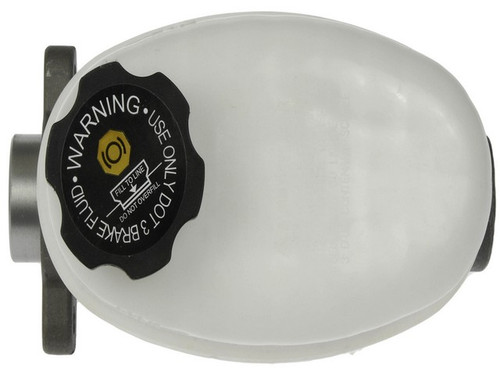

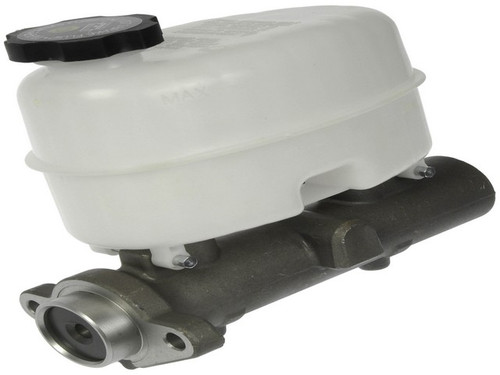

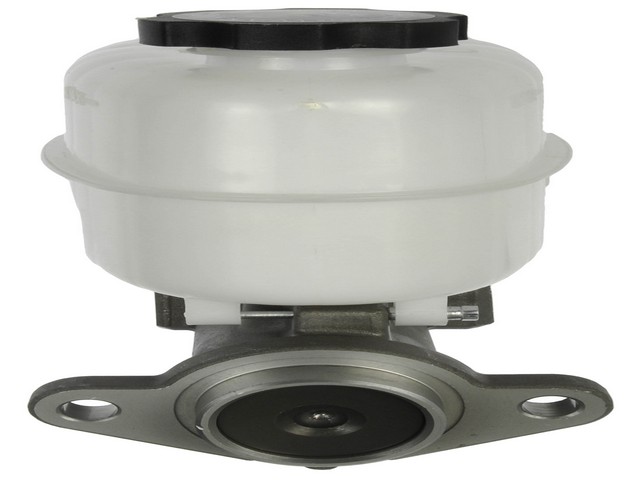

    Dorman - First Stop Brake Master Cylinder P/N:M630595
    Dorman - First Stop Brake Master Cylinder P/N:M630595
    $158.99
    $158.99

    Dorman M630595 brake master cylinder for the 2009-2017 Chevrolet Express 2500 and other vehicles turns pedal force into hydraulic pressure for the brakes.

    • Aluminum housing constructed to match the casting material of the original part, for similar performance
    • All rubber components are EPDM compound, which resists glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards

    Quick facts

    • Part: Dorman M630595 brake master cylinder
    • Fits: 2009-2017 Chevrolet Express 2500 and other vehicles
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, or fluid loss at the reservoir, can mean the master cylinder is worn, though a leaking brake line or a worn caliper can be behind the same signs, so find the cause before you replace it.

    Fits

    Besides the 2009-2017 Chevrolet Express 3500 and the 2009-2017 Chevrolet Express 4500, a wide range of other Chevrolet and GMC models take this master cylinder. If your vehicle is not named here, look it up in the "Vehicles it fits" section before you order.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 1.5 in
    • Number of outlets: 2
    • Rearward outlet size: M12 X 1.0
    • Secondary outlet thread diameter: M12 X 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Reservoir: included
    • Sensor: included
    • Condition: New
    • Country of origin: China

    In the box

    One master cylinder with its reservoir and sensor; this listing holds one, and the vehicle takes one. Mounting hardware is not included, so plan on new hardware rather than reusing the old.

    Interchange: 100-2901 · 13-4019 · 10-4019 · 130.66068 · 355-47194
    19420963 · 15936936 · NM4215 · MC391168 · F144392 · MC144392

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19420963, 100-2901, 13-4019, 10-4019, 130.66068, 355-47194, 15936936, NM4215, MC391168, F144392, MC144392

    Frequently Asked Questions

    Is the Dorman M630595 master cylinder right for the 2009-2017 Chevrolet Express 3500?

    Yes. Dorman M630595 fits the 2009-2017 Chevrolet Express 3500, and that vehicle takes one master cylinder.

    Does the Dorman M630595 come with the reservoir and sensor?

    Yes. Dorman M630595 comes as one master cylinder with its reservoir and sensor. Mounting hardware is not included.

    What are the bore size and outlet threads on this brake master cylinder?

    The bore diameter is 1.5 in. It has two outlets: the rearward outlet is M12 X 1.0, the secondary outlet thread diameter is M12 X 1.0 and the primary outlet thread pitch is 1 mm.

    Is this brake master cylinder aluminum, and are the seals made for glycol-based brake fluid?

    Yes. The housing is aluminum, and all rubber components are EPDM compound, which resists glycol-based brake fluid. The part is made entirely of new materials.

    Can a spongy pedal mean this master cylinder is failing?

    Yes, a soft or sinking pedal can be a sign of a worn master cylinder. A change in pedal feel calls for prompt attention from a shop, since it affects braking.
