Dorman - First Stop Brake Master Cylinder P/N:M390296

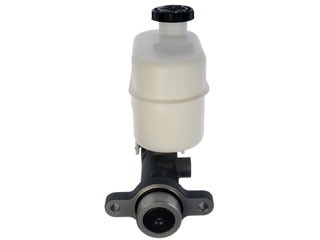

Dorman M630624 brake master cylinder for the 2009-2014 Ford E-350 Super Duty and other vehicles turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is made entirely of new materials.
A brake pedal that sinks or feels soft, fluid at the cylinder or a brake warning light can mean the master cylinder is wearing out. A leaking brake line, a sticking caliper or air in the system can produce those symptoms too, so track down the real cause before you order.
This brake master cylinder is a direct-fit replacement for the 2009-2014 Ford E-350 Super Duty, the 2009-2013 Ford E-450 Super Duty and the 2009-2014 Ford E-150, and any of those three takes a single cylinder. If your Ford is not among them, find its year and model in the "Vehicles it fits" section.
Fit and size
Build and materials
One brake master cylinder with its reservoir and sensor. Mounting hardware is not included, and the old fasteners may not be reusable, so plan on new ones.
Interchange: 100-3717 · 13-4215 · 10-4215 · 130.65129 · 355-54245
9C2Z2140H · NM4172 · MC391192 · F143681 · MC143681
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Dorman M630624 fit a 2009-2014 Ford E-150?
Yes. The Dorman M630624 brake master cylinder fits the 2009-2014 Ford E-150, and that model takes one. Other years and models are in the "Vehicles it fits" section.
Does the Dorman M630624 master cylinder come with the reservoir and sensor?
Yes. The Dorman M630624 package is one master cylinder with its reservoir and sensor. Mounting hardware is not included.
What brake fluid are the rubber parts in this master cylinder made to resist?
All rubber components in this master cylinder are made of EPDM compound, which resists glycol-based brake fluid.
What pedal symptoms can mean an aluminum master cylinder is failing?
A pedal that sinks or feels soft, or fluid seen leaking at the cylinder, can mean its internal seals are wearing out. A shop can test it, and weak brakes should be looked at promptly.
What are the outlet thread sizes on the M630624 master cylinder?
The Dorman M630624 has two outlets: the rearward outlet is M14 x 1.5 and the secondary outlet thread is M12 x 1.0. Its bore diameter is 1.313 inch.
