Brake Master Cylinder for 2009-2018 Ford E-350 Super Duty & More - Dorman M630628

$160.99

Vehicles this part fits

    Part number: M630628
    UPC: 885484092150
    Condition: New
    Weight: 4.07 LBS
    Item Package Quantity: 1
    $160.99
    Adding to cart… The item has been added

    Have questions?

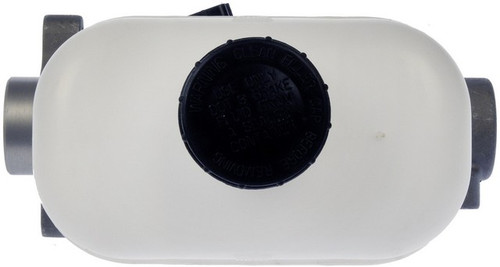

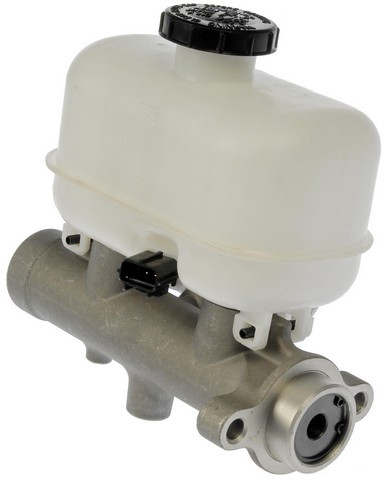

    Dorman - First Stop Brake Master Cylinder P/N:M630628
    Dorman - First Stop Brake Master Cylinder P/N:M630628
    $160.99
    $160.99

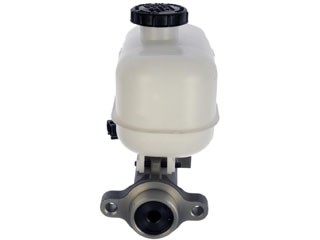

    Dorman M630628 brake master cylinder for the 2009-2018 Ford E-350 Super Duty and other vehicles turns pedal force into hydraulic pressure for the brakes. It is built to match the design, function and performance of the original master cylinder on these vehicles.

    • Aluminum housing built to match the casting material of the original part
    • Rubber components made of EPDM compound for resistance to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards
    • Three outlets, with the reservoir and sensor included

    Quick facts

    • Part: Dorman M630628 brake master cylinder
    • Fits: 2009-2018 Ford E-350 Super Duty and other vehicles
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, brake fluid around the cylinder or a brake warning light can point to a failing master cylinder. These signs alone do not prove the master cylinder is at fault, since a leak at a brake line can cause a soft pedal too.

    Fits

    It fits the 2009-2018 Ford E-350 Super Duty, the 2008-2017 Ford E-450 Super Duty and the 2009-2013 Ford E-250.

    Specifications

    Fit and size

    • Bore diameter: 1.313 in
    • Number of outlets: 3
    • Rearward outlet size: M12 x 1.5 or M12 x 1.0
    • Primary outlet thread pitch: 1.5 mm
    • Secondary outlet thread diameter: M10 X 1.5
    • Quantity per vehicle: 1

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Condition: New
    • Country of origin: China

    In the box

    One master cylinder with its reservoir and sensor. The listing holds one master cylinder, and a vehicle takes one. Mounting hardware is not included, so plan on new fasteners, as the old ones may not be reusable.

    Interchange: 100-3716 · 10-4214 · 130.65133 · 355-54249
    9C2Z2140F · NM4173 · MC391198 · F143686 · MC143686

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-3716, 10-4214, 130.65133, 355-54249, 9C2Z2140F, NM4173, MC391198, F143686, MC143686

    Frequently Asked Questions

    Does the Dorman M630628 master cylinder fit the 2008-2017 Ford E-450 Super Duty?

    Yes. Dorman M630628 fits the 2008-2017 Ford E-450 Super Duty, and the fitment calls for one master cylinder per vehicle.

    Does the Dorman M630628 come with the reservoir and sensor?

    Yes. Dorman M630628 includes the reservoir and the sensor with the master cylinder. Mounting hardware is not included.

    What bore diameter does this aluminum master cylinder have?

    The bore diameter is 1.313 in. The housing is aluminum, and the cylinder has three outlets.

    How can I tell a brake master cylinder is going bad?

    Look for a soft or sinking pedal, fluid around the cylinder or a brake warning light. A shop can test the master cylinder properly, and brakes should be checked promptly.

    Is 9C2Z2140F an interchange number for this master cylinder?

    Yes. 9C2Z2140F is one of the numbers Dorman M630628 replaces, along with 100-3716 and NM4173.
