Brake Master Cylinder for 2009-2012 Toyota Venza - Dorman M630661

$165.99

Vehicles this part fits

    Part number: M630661
    UPC: 885484092815
    Condition: New
    Weight: 1.20 LBS
    Item Package Quantity: 1
    $165.99
    Adding to cart… The item has been added

    Have questions?

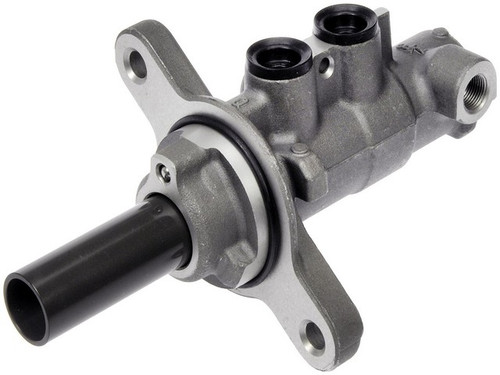

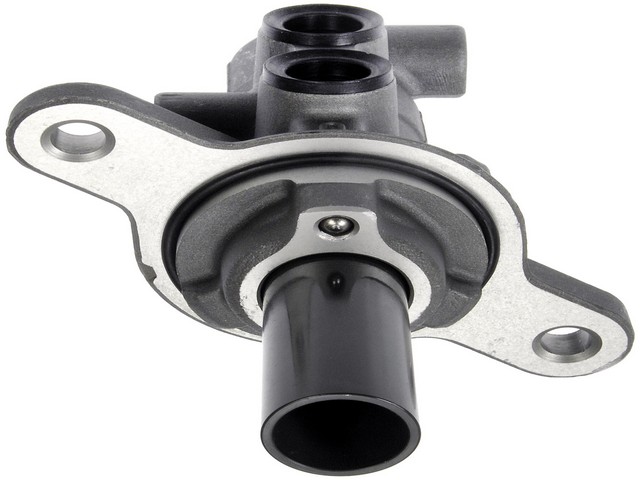

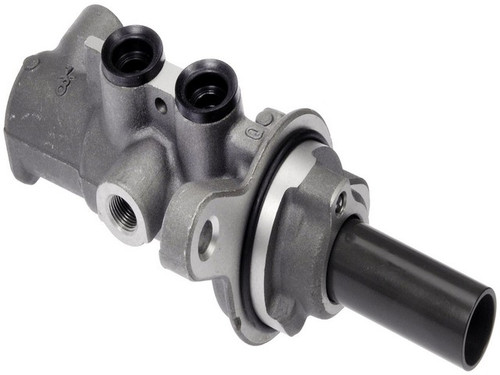

    Dorman - First Stop Brake Master Cylinder P/N:M630661
    Dorman - First Stop Brake Master Cylinder P/N:M630661
    $165.99
    $165.99

    Dorman M630661 brake master cylinder for the 2009-2012 Toyota Venza turns brake pedal force into hydraulic pressure for the brakes. It is engineered to follow the design, function and performance of the original master cylinder.

    • Dorman First Stop line
    • Aluminum master cylinder housing with two outlets
    • Rubber components made of EPDM compound for resistance to glycol-based brake fluid
    • Made entirely of new materials
    • Built to meet rigorous SAE International standards

    Quick facts

    • Part: Dorman M630661 brake master cylinder
    • Fits: 2009-2012 Toyota Venza
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, a brake warning light or fluid around the cylinder can mean the master cylinder is failing. A leaking brake line, a sticking caliper or worn pads can be behind those signs too, so find the cause before buying a replacement. If a failed master cylinder is the cause, this one replaces it.

    Fits

    This master cylinder is a direct-fit replacement for the 2009-2012 Toyota Venza. The 2009-2012 Toyota Venza takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.875 in
    • Number of outlets: 2
    • Rearward outlet size: M12 X 1.0
    • Secondary outlet thread diameter: M12 X 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Condition: New
    • Country of origin: China

    In the box

    One master cylinder. The reservoir, sensor and mounting hardware are not included, so plan on new fasteners because the old ones may not be reusable.

    Interchange: 100-2919 · 13-4285 · 11-4285 · 130.44052 · 355-76031
    NM55674 · MC391262 · 472010T010 · F143574 · MC143574

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-2919, 13-4285, 11-4285, 130.44052, 355-76031, NM55674, MC391262, 472010T010, F143574, MC143574

    Frequently Asked Questions

    Does the Dorman M630661 brake master cylinder fit the 2009-2012 Toyota Venza?

    Yes. Dorman M630661 is a direct-fit replacement for the 2009-2012 Toyota Venza, which takes one master cylinder.

    Does the Dorman M630661 come with a reservoir or sensor?

    No. Dorman M630661 is one master cylinder only. The reservoir, sensor and mounting hardware are not included.

    Is this brake master cylinder aluminum, and what are its rubber parts made of?

    The housing is aluminum. All rubber components are made of an EPDM compound that resists glycol-based brake fluid.

    Is a brake pedal that slowly sinks a sign of a worn master cylinder?

    Yes, a sinking pedal can be a sign of a worn master cylinder, since this part builds the hydraulic pressure behind the pedal, but a leak elsewhere can cause it too. Brakes are a safety system, so have them checked promptly.

    What outlet thread sizes does this brake master cylinder have?

    This brake master cylinder has two outlets. The rearward and secondary outlet threads are M12 X 1.0, the primary outlet thread pitch is 1 mm, and the bore is 0.875 in.
