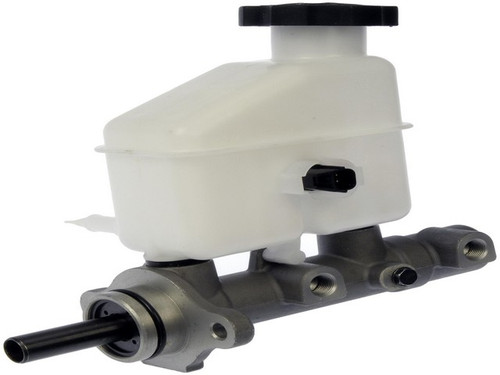

Dorman - First Stop Brake Master Cylinder P/N:M630675

Convert brake-pedal force into the hydraulic pressure that operates the braking system with the Dorman - First Stop Brake Master Cylinder M630675. It installs as a direct-fit replacement for the 2009-2012 Hyundai Elantra [All] and the 2010 Kia Forte [All]. This unit is 100% new — not remanufactured — and is engineered to reproduce the design, function, and performance of the original master cylinder on the listed applications.

• Aluminum housing: the cylinder housing is built to match the casting material of the original part for similar performance.
• EPDM rubber components: the rubber parts use a high-quality EPDM compound for resistance to glycol-based brake fluid.
• Two outlets: features a 0.813 in bore, an M12 x 1.0 rearward/secondary outlet, and a 1 mm primary outlet thread pitch.
• Ready to install: includes the reservoir and fluid-level sensor; built to meet rigorous SAE International standards.

Mounting hardware is not included — consult the vehicle service information for the correct fasteners and whether they may be reused. Country of origin: China. Signs the original master cylinder may need replacing include a sinking or spongy pedal, internal or external fluid leakage, and loss of hydraulic pressure. Diagnose the cause before replacing.

Interchange: 100-3725 · 13-4352 · 11-4352 · 130.51053 · 355-03049
1003725 · 134352 · 114352 · 13051053 · 35503049 · 585102L500 · NM55388 · MC391275 · F144060 · MC144060
