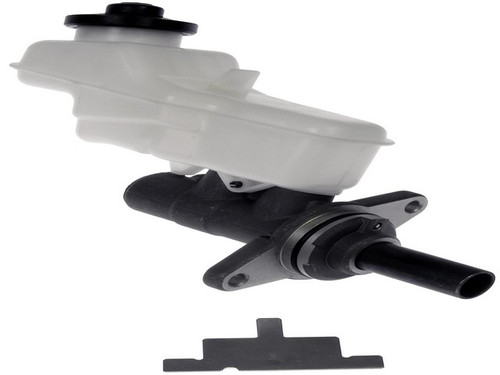

Brake Master Cylinder for 2009-2013 Toyota Corolla & More - Dorman M630705

$199.99

Vehicles this part fits

    Part number: M630705
    UPC: 885484103832
    Condition: New
    Weight: 4.07 LBS
    Item Package Quantity: 1
    $199.99
    Adding to cart… The item has been added

    Have questions?

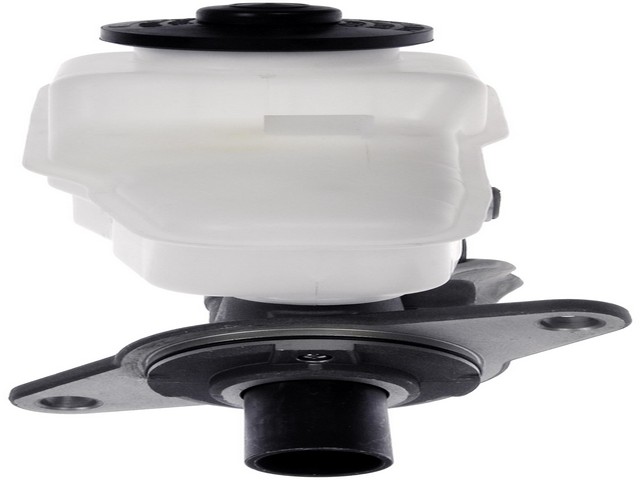

    Dorman - First Stop Brake Master Cylinder P/N:M630705
    Dorman - First Stop Brake Master Cylinder P/N:M630705
    $199.99
    $199.99

    Dorman M630705 brake master cylinder for the 2009-2013 Toyota Corolla and other vehicles turns pedal force into hydraulic pressure for the brakes. Its design follows the function and performance of the original cylinder for these model years.

    • First Stop line: new master cylinder with a 0.875 in bore
    • Aluminum housing constructed to match the casting material of the original part
    • EPDM rubber components that resist glycol-based brake fluid
    • Made entirely of new materials to SAE International standards
    • Reservoir and sensor included with the cylinder

    Quick facts

    • Part: Dorman M630705 brake master cylinder
    • Fits: 2009-2013 Toyota Corolla and other vehicles
    • Material: Aluminum
    • Condition: New

    A worn master cylinder can show up as a soft or sinking brake pedal, fluid around the cylinder body or a brake warning light. Before you replace it, rule out leaking lines, hoses or calipers and air in the system, which can also soften the pedal. This listing is one cylinder; the brake system uses a single one per vehicle.

    Fits

    It fits the 2009-2013 Toyota Corolla and the 2009-2013 Toyota Matrix.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.875 in
    • Number of outlets: 2
    • Rearward outlet size: M12 X 1.0 mm
    • Secondary outlet thread diameter: M12 X 1.0 mm
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Condition: New
    • Country of origin: China

    In the box

    One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware rather than reusing the old.

    Interchange: 100-2869 · 13-3859 · 130.44129 · 355-76058
    NM55524 · MC391274 · 4720102591 · 4720102593 · 4720112B60 · 4720112B61 · F143495 · F143577 · F143646 · F143698 · MC143495 · MC143577 · MC143646 · MC143698

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-2869, 13-3859, 130.44129, 355-76058, NM55524, MC391274, 4720102591, 4720102593, 4720112B60, 4720112B61, F143495, F143577, F143646, F143698, MC143495, MC143577, MC143646, MC143698

    Frequently Asked Questions

    Does Dorman M630705 fit the 2009-2013 Toyota Matrix?

    Yes. Dorman M630705 fits the 2009-2013 Toyota Matrix as well as the 2009-2013 Toyota Corolla, and each takes one master cylinder.

    Does this master cylinder come with the reservoir and sensor?

    Yes. Dorman M630705 comes with its reservoir and sensor. Mounting hardware is not included, so plan on new hardware.

    What are the rubber parts in this master cylinder made of?

    All rubber components are EPDM compound, which resists glycol-based brake fluid. The cylinder housing is aluminum.

    How can I tell if my master cylinder is leaking?

    A soft or sinking pedal, fluid on the cylinder body or a brake warning light can be signs of a leak. With the engine off you can look for wet spots; a shop can pressure-test it.

    Does Dorman M630705 replace the 4720112B60 master cylinder?

    Yes. 4720112B60 is one of the numbers on the Interchange line for Dorman M630705, along with 4720112B61 and 4720102591.
