Brake Master Cylinder for 1999-2007 Chevrolet W5500 Tiltmaster & More - Dorman M630792

$166.99

Vehicles this part fits

    Part number: M630792
    UPC: 885484248991
    Condition: New
    Weight: 2.50 LBS
    Item Package Quantity: 1
    $166.99
    Adding to cart… The item has been added

    Have questions?

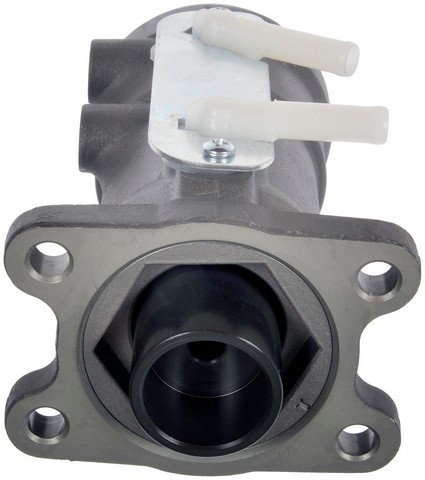

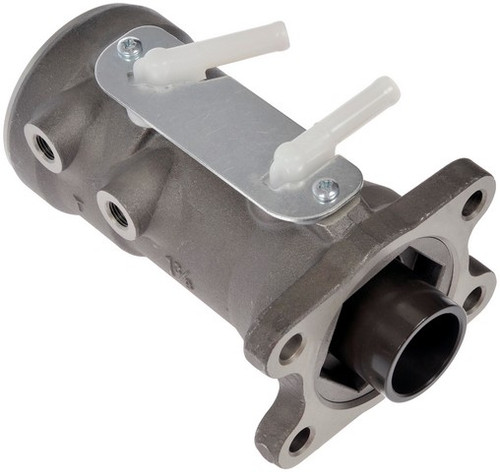

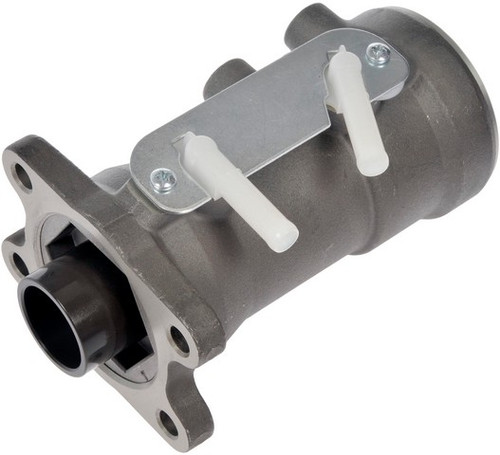

    Dorman - First Stop Brake Master Cylinder P/N:M630792
    Dorman - First Stop Brake Master Cylinder P/N:M630792
    $166.99
    $166.99

    Dorman M630792 brake master cylinder for the 1999-2007 Chevrolet W5500 Tiltmaster and other vehicles turns pedal force into hydraulic pressure for the brakes. This new Dorman brake master cylinder is engineered to follow the original's design, function and performance.

    • Dorman First Stop line
    • Aluminum cylinder housing
    • EPDM rubber components that resist glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet SAE International standards

    Quick facts

    • Part: Dorman M630792 brake master cylinder
    • Fits: the 1999-2007 Chevrolet W5500 Tiltmaster and other vehicles
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, fluid around the cylinder or a brake warning light can mean the brake master cylinder is worn. Before you replace this brake master cylinder, rule out a leaking line, hose or caliper and air in the brake system, which can also leave the pedal soft.

    Fits

    It is listed for a wide range of Chevrolet, GMC and Isuzu models, led by the 1999-2007 Chevrolet W5500 Tiltmaster, the 2004-2007 Chevrolet W5500HD Tiltmaster and the 1999-2007 GMC W5500 Forward. The 1999-2007 Chevrolet W5500 Tiltmaster takes one. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting holes: 4
    • Bore diameter: 1.375 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Reservoir type: Single
    • Condition: New
    • Country of origin: China

    In the box

    One brake master cylinder and a bleeder kit. Mounting hardware, mounting bracket, reservoir, cap, push rod and sensor are not included, so plan on new mounting hardware, since the old fasteners may not be reusable.

    Interchange: 100-2941 · 13-3940 · 11-3940 · 11-3943 · 11-3970 · 130.76012 · 355-47206
    97186688 · 97254771 · 8971866880 · 8971866910 · 8972077030 · 8972243790 · 8972547710 · NM9000 · NM9002 · F140751 · MC140751

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-2941, 13-3940, 11-3940, 11-3943, 11-3970, 130.76012, 355-47206, 97186688, 97254771, 8971866880, 8971866910, 8972077030, 8972243790, 8972547710, NM9000, NM9002, F140751, MC140751

    Frequently Asked Questions

    Does the Dorman M630792 fit the 2004-2007 Chevrolet W5500HD Tiltmaster?

    Yes. Dorman M630792 is listed for the 2004-2007 Chevrolet W5500HD Tiltmaster, which takes one. Open the "Vehicles it fits" section to check other models and engines.

    Is this Dorman master cylinder sold with a reservoir?

    No. Dorman M630792 comes as the master cylinder with a bleeder kit. The reservoir, cap, push rod, sensor, mounting hardware and mounting bracket are not included.

    What size are the outlet threads on this brake master cylinder?

    The rearward and secondary outlets are M10 x 1.0, and the primary outlet thread pitch is 1 mm. The bore diameter is 1.375 in.

    What signs can point to a worn aluminum brake master cylinder?

    A soft or sinking pedal, fluid near the cylinder or a brake warning light can mean it is worn. Weak brakes need prompt attention, so have them checked by a shop.

    Does Dorman M630792 replace the 11-3940 master cylinder number?

    Yes. Dorman M630792 is cross-referenced to 11-3940, along with 100-2941, 13-3940 and other numbers on the Interchange line.
