Dorman - First Stop Brake Master Cylinder P/N:M118403

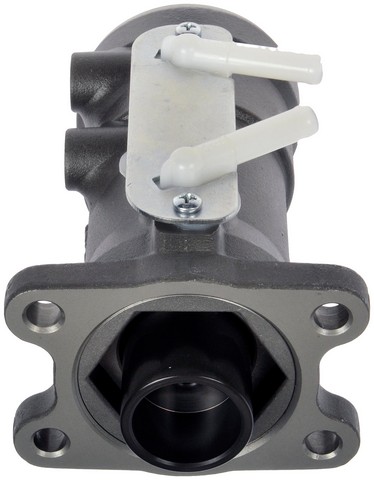

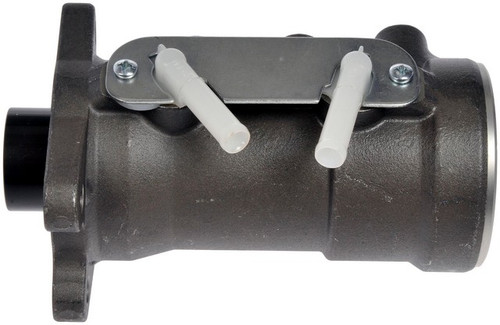

Dorman M630794 brake master cylinder for the 2002-2007 Chevrolet W4500 Tiltmaster and other vehicles turns pedal force into hydraulic pressure for the brakes.
A brake pedal that sinks toward the floor, feels soft, or a fluid level that keeps dropping can mean the master cylinder is worn. Before replacing it, look with the engine off for wet fluid on the cylinder body and the booster, and check the brake lines for leaks, since a leak elsewhere can give the same pedal feel.
It is a direct-fit replacement for the 2002-2007 Chevrolet W4500 Tiltmaster, the 2002-2007 GMC W4500 Forward and the 2002-2007 Isuzu NPR-HD, and each takes one.
Fit and size
Build and materials
One master cylinder and one bleeder kit. Mounting hardware, mounting bracket, reservoir, reservoir cap, push rod and sensor are not included, so plan on new mounting hardware rather than reusing the old.
Interchange: 130.76012
97315167 · 8973151670 · MC391538 · F140753 · MC140753
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is the Dorman M630794 master cylinder the right one for the 2002-2007 GMC W4500 Forward?
Yes. Dorman M630794 fits the 2002-2007 GMC W4500 Forward, and that truck takes one master cylinder.
Does the Dorman M630794 come with a bleeder kit?
Yes. Dorman M630794 comes with one master cylinder and a bleeder kit. The reservoir, cap, push rod, sensor, bracket and mounting hardware are not included.
Are the rubber parts in this master cylinder made for brake fluid?
Yes. All rubber components are EPDM, which resists glycol-based brake fluid. The housing is aluminum.
My brake pedal slowly sinks to the floor. Could the master cylinder be behind it?
Yes, a worn master cylinder can let the pedal sink, and other brake problems can too. A sinking pedal needs prompt attention, and a shop can test the system.
What bore size and outlet threads does the Dorman M630794 have?
Dorman M630794 has a 1.375 in bore and two outlets. The rearward outlet is M10 x 1.0 and the secondary outlet thread is M12 x 1.0.
