Brake Master Cylinder for 2009-2011 Honda Civic & More - Dorman M630816

$136.99

Vehicles this part fits

    Part number: M630816
    UPC: 885484270220
    Condition: New
    Weight: 1.73 LBS
    Item Package Quantity: 1
    $136.99
    Adding to cart… The item has been added

    Have questions?

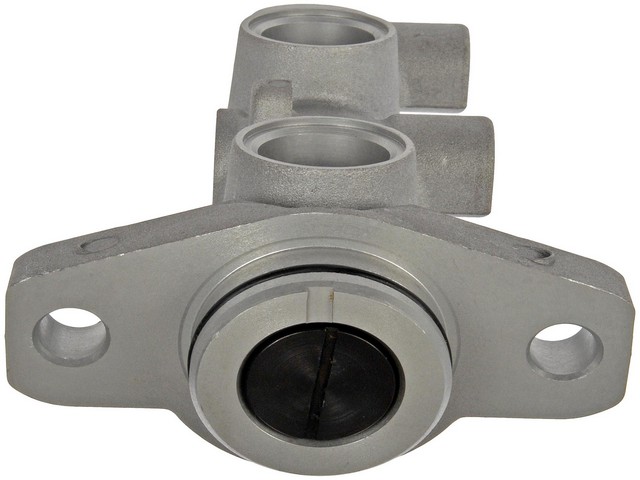

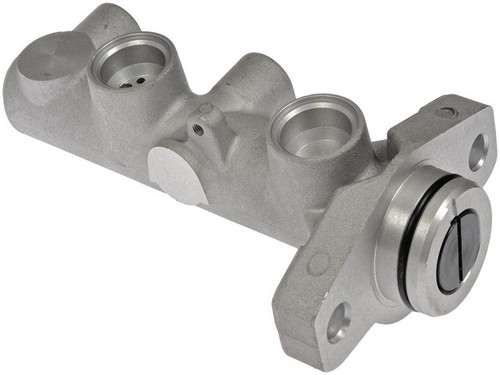

    Dorman - First Stop Brake Master Cylinder P/N:M630816
    Dorman - First Stop Brake Master Cylinder P/N:M630816
    $136.99
    $136.99

    Dorman M630816 brake master cylinder for the 2009-2011 Honda Civic and other vehicles turns pedal force into hydraulic pressure for the brakes. Its design and function follow the original master cylinder on specific model years.

    • Part of the Dorman First Stop line
    • Aluminum master cylinder body
    • All rubber components are EPDM compound, resistant to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet SAE International standards

    Quick facts

    • Part: Dorman M630816 brake master cylinder
    • Fits: 2009-2011 Honda Civic and other vehicles
    • Material: aluminum
    • Condition: New

    A soft or sinking pedal, fluid on the cylinder body or a reservoir level that keeps dropping can mean the master cylinder is failing, though other brake parts produce similar symptoms. Before replacing it, look the cylinder and reservoir over for wetness with the engine off, and leave pressure tests to a shop. The 2009-2011 Honda Civic takes one.

    Fits

    It is a brake master cylinder replacement for the 2009-2011 Honda Civic, the 2014-2015 Civic and the 2013-2014 Acura ILX.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.938 in
    • Number of outlets: 2
    • Rearward outlet size: M12 X 1.0
    • Secondary outlet thread diameter: M12 X 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: aluminum
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One master cylinder. The reservoir, sensor and mounting hardware are not included, so plan on new mounting hardware rather than reusing the old.

    Interchange: 100-3767 · 13-4162 · 11-4162 · 130.40075 · 355-59052
    01461SNCG00 · NM55394 · MC391355 · R135855

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-3767, 13-4162, 11-4162, 130.40075, 355-59052, 01461SNCG00, NM55394, MC391355, R135855

    Frequently Asked Questions

    Is this a master cylinder for the 2014-2015 Honda Civic?

    Yes. Dorman M630816 fits the 2014-2015 Honda Civic and the 2009-2011 Civic as well.

    Does this Dorman brake master cylinder come with the reservoir?

    No. Dorman M630816 is one master cylinder; the reservoir, sensor and mounting hardware are not included.

    What are the bore and outlet sizes of this Dorman master cylinder?

    The bore diameter is 0.938 in. It has two outlets: the rearward outlet is M12 X 1.0, and the secondary outlet thread diameter is M12 X 1.0.

    Are the rubber parts in this master cylinder made for glycol-based brake fluid?

    Yes. Every rubber component is an EPDM compound, which resists glycol-based brake fluid.

    Does this master cylinder replace part number 100-3767?

    Yes. 100-3767 is one of the numbers Dorman M630816 replaces; the other cross-reference numbers are on the Interchange line.
