Brake Master Cylinder for 2012-2018 Fiat 500 - Dorman M630817

$134.99

Vehicles this part fits

    Part number: M630817
    UPC: 885484270237
    Condition: New
    Weight: 1.73 LBS
    Item Package Quantity: 1
    $134.99

    Out of stock

    Have questions?

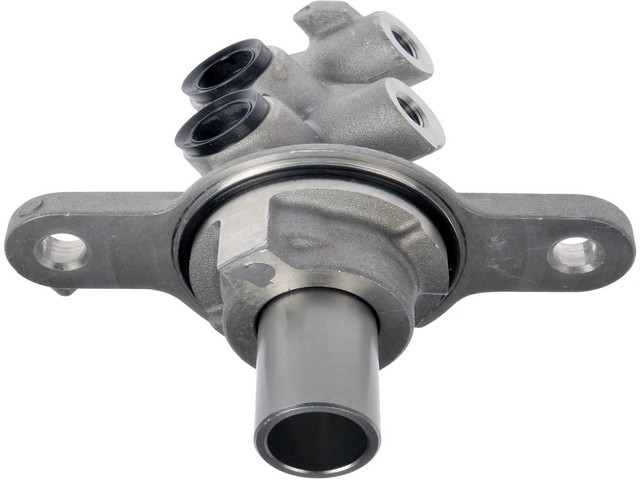

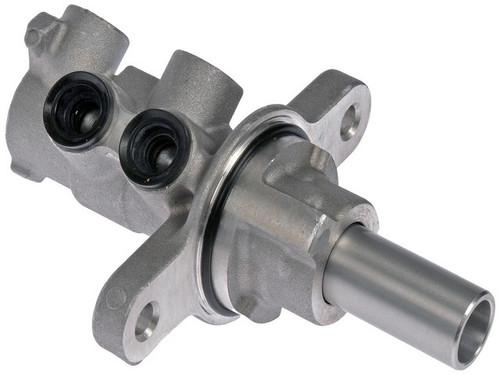

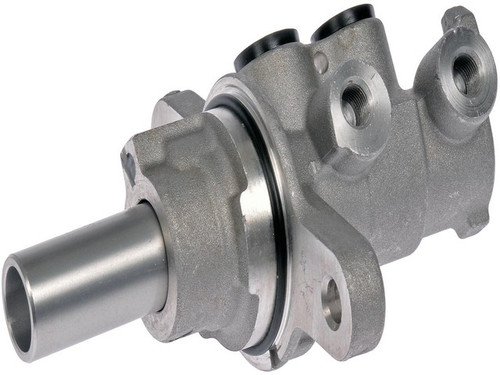

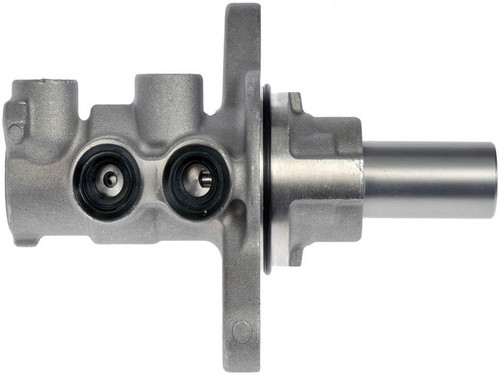

    Dorman - First Stop Brake Master Cylinder P/N:M630817
    Dorman - First Stop Brake Master Cylinder P/N:M630817
    $134.99
    $134.99

    Dorman M630817 brake master cylinder for the 2012-2018 Fiat 500 turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder sends that pressure out through two outlets.

    • Part of the Dorman First Stop line
    • Aluminum cylinder housing
    • All rubber components are made of an EPDM compound that resists glycol-based brake fluid
    • Made entirely of new materials
    • Built to meet SAE International standards

    Quick facts

    • Part: Dorman M630817 brake master cylinder
    • Fits: 2012-2018 Fiat 500
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, or fluid leaking at the cylinder, can mean the master cylinder is worn. Worn brake pads, a leaking caliper or brake line, or air in the system can be behind those signs too, so find the cause before buying a replacement. A shop can test the brake system.

    Fits

    This is a direct-fit replacement for the 2012-2018 Fiat 500, and that car takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.875 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Master cylinder material: Aluminum
    • Rubber components: EPDM compound
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One brake master cylinder. The reservoir, sensor and mounting hardware are not included; plan on new hardware, since the old fasteners may not be reusable.

    Interchange: 100-4101 · 13-4516 · 10-4516 · 130.04300 · 355-07003
    68096055AA · NM55471 · MC391419 · R144516

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-4101, 13-4516, 10-4516, 130.04300, 355-07003, 68096055AA, NM55471, MC391419, R144516

    Frequently Asked Questions

    Will this Dorman M630817 work as a master cylinder for the 2012-2018 Fiat 500?

    Yes. Dorman M630817 is a direct-fit replacement for the 2012-2018 Fiat 500, and the car takes one.

    Does this Dorman master cylinder come with the reservoir?

    No. Dorman M630817 is the master cylinder only, without the reservoir, sensor or mounting hardware.

    What brake fluid are the rubber parts in this master cylinder made for?

    All rubber components are made of an EPDM compound that resists glycol-based brake fluid.

    Can a sinking brake pedal mean the master cylinder is going bad?

    It can, and fluid leaking at the cylinder can be another sign. Have the brakes checked or the part replaced promptly rather than driving on them.

    What bore size and outlet threads does this master cylinder have?

    The bore is 0.875 in. The two outlets are threaded M10 x 1.0, with a 1 mm pitch on the primary outlet.
